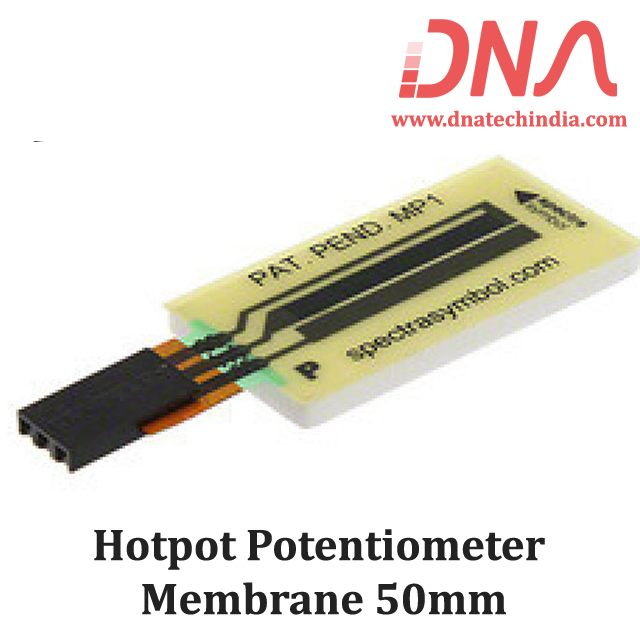

Hotpot Potentiometer Membrane 50mm

Write a review | 2 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-16
SKU: 503 |

Rs. 1,121.00 (inc GST)
Rs.950.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Hotpot Potentiometer Membrane 50mm

This is a very thin variable potentiometer of 50 mm length.

By pressing on various parts of the strip the resistance changes linearly from 1K ohms to 10K ohms thus allowing user to very accurately calculate the relative position on the strip.

Hotpot Potentiometer Membrane is made from impregnated fiberglass material, the HotPot sensor is highly resistant to temperature fluctuations. It operates either via an actuator or finger contact. OEMs and engineers prefer using this pot with a finger or stylus. Attached to the shaft is a wiper that provides absolute position location.

We have Various sizes of Potentiometer. Check out our complete collection of Potentiometer.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features and Advantages of Hotpot Potentiometer

Robust design for maximum durability
Easy to install or mount
Sealed for maximum reliability in harsh environments
Cost effective/economical
Offers low form factor
High life cycle and tolerance to heat and humidity
Dust and water proof

How HotPot Works?

In simple terms, the HotPot membrane potentiometer is a resistive element, which comprises a conductive resistor, a sealed encasement and a simple wiper assembly. A membrane potentiometer can also function as a voltage divider.

The HotPot is a three-wire system with two resistive output channels and an electrical collector channel.

By pressing a wiper down onto the top circuit the HotPot produces the desired electrical output. The “wiper” is a non-conductive mechanism that depresses the top circuit actuating the potentiometer from the outside of the element. The top and bottom circuits are separated by 0.15mm (0.006″) of spacer adhesive build-up and contact between the circuit occurs by pressure (usually 1-3 Newtons) from the wiper on the top circuit, pushing down until the top circuit connects with the bottom circuit to create a potentiometric output.

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
