ACS758LCB-050B Current Sensor Module

  • Stock: 12
  • SKU: 2147 | DAB525
  • Rs. 660.80 (inc GST)
    Rs.560.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

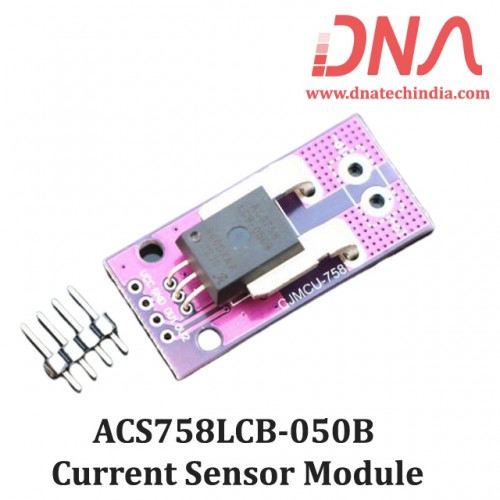

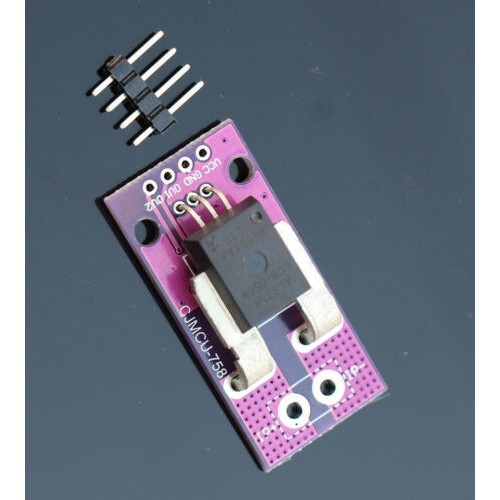

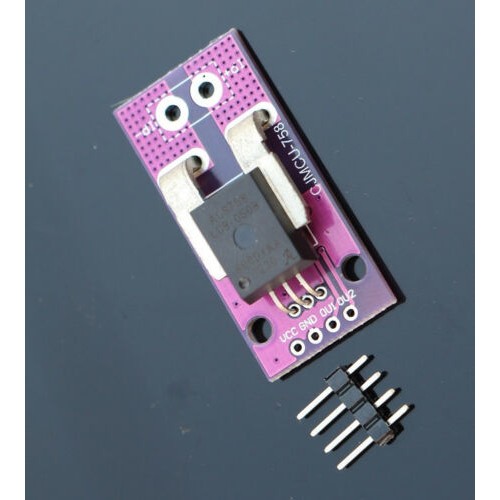

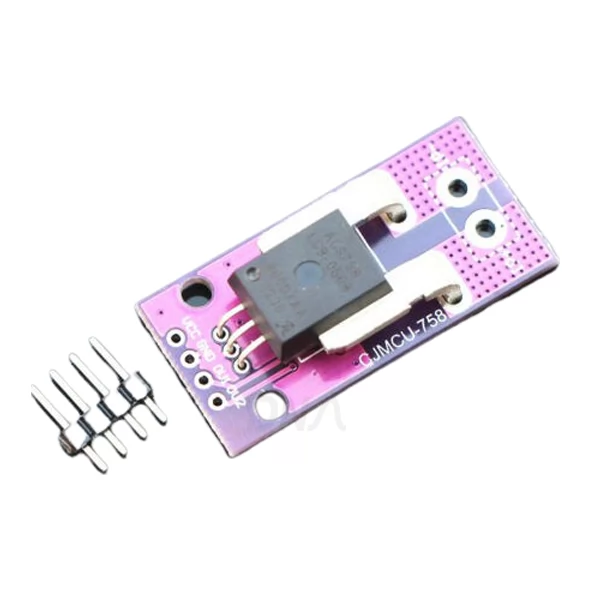

ACS758LCB-050B Current Sensor Module

ACS758LCB-050B Bidirectional Hall effect Current Sensor Module

This Module is Based on Allegro Hall effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.

The relationship between voltage output and current input:
 VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.
For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Bidirectional Current Sensor Module ACS758LCB-050B

  • Operating voltage : 3 to 5 Volts (MAX 8 V)
  • Static output voltage : VCC/2
  • Operating current : 13.5 mA (MAX)
  • Storage temperature range : -65 °C – 165 °C
  • Maximum output current (VIOUT-GND) : 3 mA
  • Internal bandwidth : 120 KHz
  • Detection current range (A) : ±50
  • Linearity (mV/A) : 40
  • Working temperature (°C) : -40 to 150
  • Module size : 37mm x 18mm
  • Module weight : 8.8 g
