Product Images are shown for illustrative purposes only and may differ from actual product.

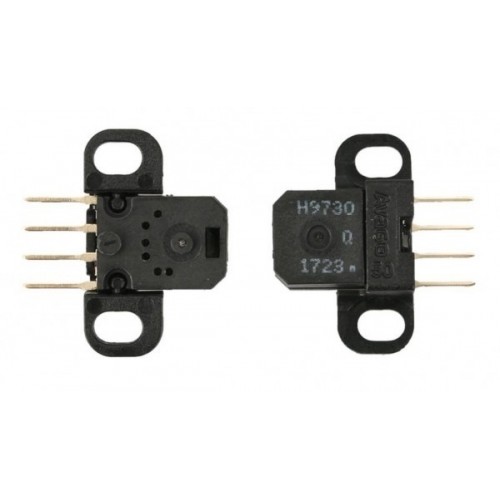

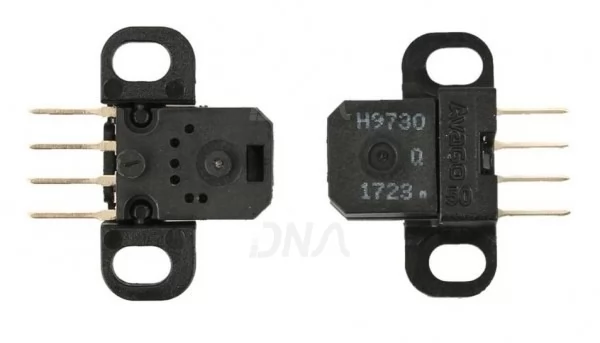

H9730 Small Optical Encoder Modules 480lpi Digital Output SENSOR

Write a review | 0 reviews

Stock: 1
Availability: InStock priceValidUntil: 2026-02-19
Brand: Generic
SKU: 7470 | DAF841

Rs. 3,155.32 (inc GST)
Rs.2,674.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

H9730 Small Optical Encoder Modules 480lpi Digital Output SENSOR

H9730 Small Optical Encoder Modules 480lpi Digital Output SENSOR

The HEDS-9730 is a high performance incremental encoder module. When operated in conjunction with either a code wheel or code strip, this module detects rotary or linear position. The encoder consists of a lensed LED source and a detector IC enclosed in a small C-shaped plastic package. Due to a highly collimated light source and a unique photodetector array, the module is extremely tolerant to mounting misalignment. The two channel digital outputs and 3.3V supply input are accessed through four solder plated leads located on 2.54mm (0.1inch) centers. The standard HEDS-9730 is designed for use with an appropriate optical radius code wheel or linear code strip. Other options are available. Please contact the factory for more information.

DNA solutions, Nashik has various types of Sensor's. Check out our complete collection of Sensor's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of H9730 Small Optical Encoder Modules 480lpi Digital Output SENSOR

Small Size
High Resolution
Two Channel Quadrature Output
Linear and Rotary Applications
No Signal Adjustment required
TTL or 3.3V/5V CMOS Compatible
Wave Solderable
Lead-free Package
-40°C to 85°C Operating Temperature

Specifications of H9730 Small Optical Encoder Modules 480lpi Digital Output SENSOR

Measurement Range: 0 – 5000 ppm (parts per million) CO₂
Accuracy: ±30 ppm or ±3% of reading (whichever is greater)
Sensor Type: NDIR (Non-Dispersive Infrared)
Response Time (T90): <30 seconds for 90% of the full range
Operating Voltage: 5V DC (typical)

Package Includes

1 x H9730 Small Optical Encoder Modules 480lpi Digital Output SENSOR

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
