HX1204-E PROXIMITY SENSOR
- Stock: Out Of Stock
- SKU: 8160 | DAH679
-
Rs. 2,178.46 (inc GST)
Rs.1,846.15 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
HX1204-E PROXIMITY SENSOR
HX1204-E PROXIMITY SENSOR

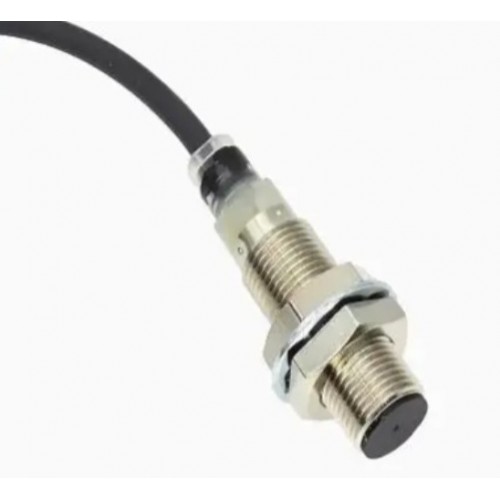

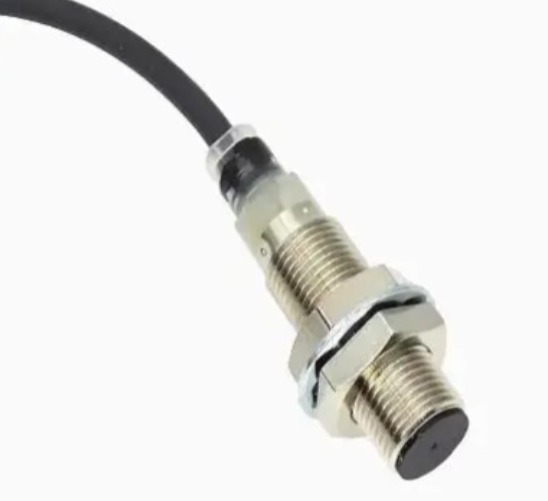

The HX1204-E Proximity Sensor is a high-performance inductive sensor specifically designed for non-contact detection of metallic objects. It operates by generating an electromagnetic field, and when a metallic object enters the sensing range, the sensor detects changes in this field and triggers an output signal. This sensor is robust, reliable, and ideal for applications requiring precision and durability in industrial environments. Its stainless-steel housing ensures resistance to mechanical stress, corrosion, and harsh operating conditions.
DNA solutions, Nashik has various types of Sensor's. Check out our complete collection of Sensor's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of HX1204-E PROXIMITY SENSOR
- Sensing Distance: 4 mm
- Housing Diameter: M12
- Output Type: NPN Normally Closed (NC)
- Housing Material: Stainless Steel
- Connection Type: 2-meter cable
- Operating Temperature Range: -25°C to +70°C
- Protection Rating: IP67
Specifications of HX1204-E PROXIMITY SENSOR
- Rated Operating Distance: 4 mm
- Installation Type: Flush mounting
- Output Function: Normally Closed (NC)
- Supply Voltage: 10 to 32 VDC
- Maximum Output Current: 200 mA
- Maximum Switching Frequency: 500 Hz
Applications of HX1204-E PROXIMITY SENSOR
- Position Sensing: Detecting the presence or absence of metal components in automated systems
- Speed Monitoring: Measuring rotational speed by counting metallic gear teeth
- Object Detection: Identifying metal objects on conveyor systems
- Machine Safety: Serving as a limit switch to prevent mechanical over-travel
Package Includes
1 x HX1204-E PROXIMITY SENSOR
