ISL29125 RGB Light Sensor

Write a review | 1 reviews

Stock: 10
Availability: InStock priceValidUntil: 2026-08-12
SKU: 1282 | DAA935

Rs. 1,349.92 (inc GST)
Rs.1,144.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ISL29125 RGB Light Sensor

If you’ve had ideas for a project that depends on the ability to sense different spectrums of visible light and react based on those measurements, the ISL29125 breakout board may be just what you need.

The ISL29125 breakout board makes it very easy to sense and record the light intensity of the general red, green, and blue spectrums of visible light while rejecting IR from light sources. You can then use these color sensor readings for the purposes of logging and finding patterns, or creatively calculate and make control decisions in your electronic projects.

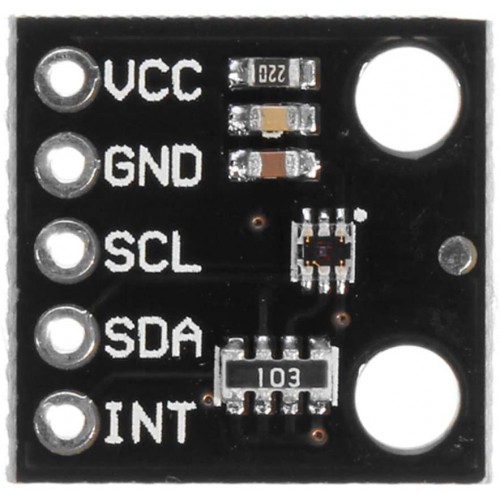

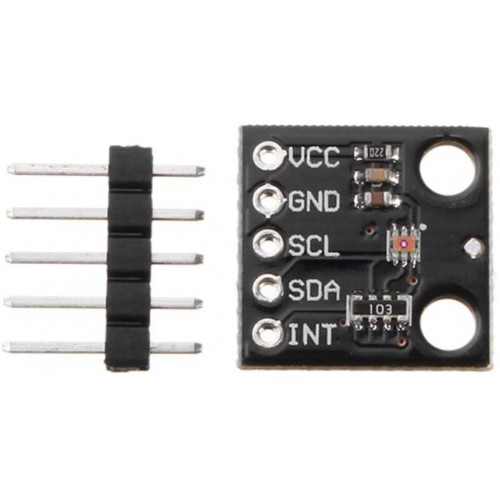

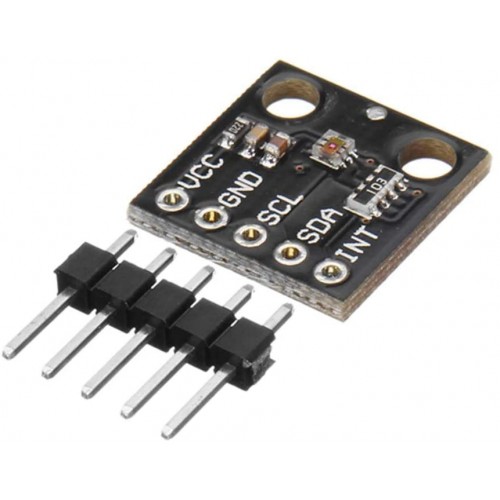

Each pin from the ISL29125 has been broken out to allow you to interface with it, SDA, SCL, 3.3V, GND, and even an optional INT pin is available for use. The ISL29125 Light Sensor operates at 3.3V but if you plan on using this chip with a 5V microcontroller make sure to use a logic level converter.

Features of ISL29125

Operating Voltage : 3.3V
Operating Current : 56µA
Selectable Range
I2C (SMBus compatible) Output
ADC Resolution 16 bits
SCL, SDA, INT, 3.3V, & GND Pins Broken Out
Dimensions : 18.4mm x 17.2mm x 2.4mm (0.7" x 0.6" x 0.09")
