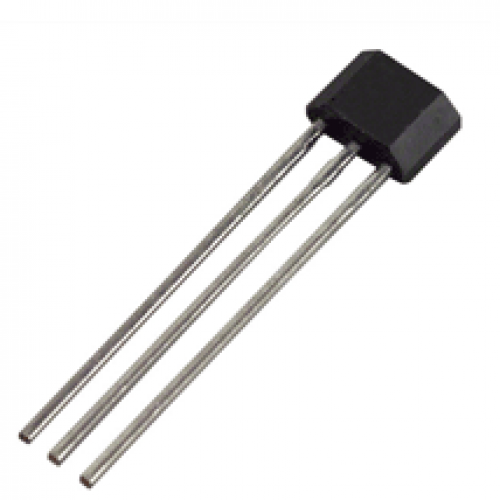

WSH130 Hall Effect Switch

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-08-25
SKU: 297 | DAA577

Rs. 41.30 (inc GST)
Rs.35.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

WSH130 Hall Effect Switch Sensor

WSH130 is designed to integrate Hall sensor with output driver together on the same chip, it is suitable for speed measurement, revolution counting, positioning, and DC brushless motors.

It includes a temperature compensated voltage regulator, a differential amplifier, a Hysteresis controller and a open-collector output driver capable of sinking up to 20mA current load. An on-chip protection resistor is implemented to prevent reverse power fault. The temperature-dependent bias increases the supply voltage of the hall plates and adjusts the switching points to the decreasing induction of magnets at higher temperatures. Subsequently, the output can keep switching on/off on more preciseswitch point regardless to the ambient temperature. WSH130 are rated for operation over temperature range from –40˚ C to 125 ˚C and voltage ranges from 2.4V to 26V.

Features of WSH130

Operates from 2.4V to 26V supply voltage with reverse voltage protection
Operates with magnetic fields from DC to 15kHz
On-chip Hall Sensor
On-chip temperature compensation circuitry minimizes shifts in on and off points and hysteresis over temperature and supply voltage
Ideal sensor for speed measurement, revolution counting, positioning, and DC brushless motors
On(L) with magnetic South pole and Off (H) with North pole
