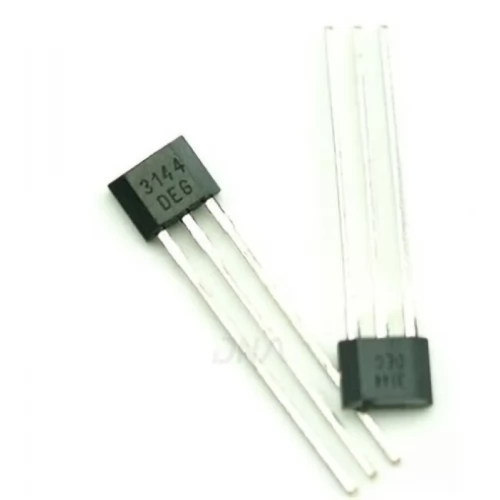

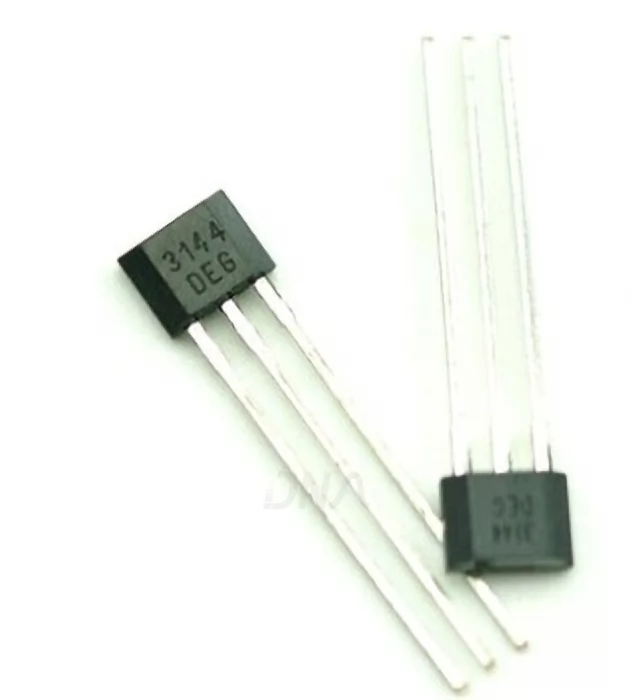

A3144 Hall Effect Switch
- Stock: 100
- SKU: 394 | DAA576
-
Rs. 17.70 (inc GST)
Rs.15.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
A3144 Hall Effect Sensor
A3144 is a Hall effect Switch/Sensor.
A3144 is a monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes. The unipolar switching characteristic makes these devices ideal for use with a simple bar or rod magnet.
Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, small signal amplifier, Schmitt trigger, and an open-collector output to sink up to 25 mA. With suitable output pull up, they can be used with bipolar or CMOS logic circuits.
FEATURES of A3144 Hall effect Sensor
- Superior Temp. Stability for Automotive or Industrial Applications
- 4.5 V to 24 V Operation.Needs Only An Unregulated Supply
- Open-Collector 25 mA Output. Compatible with Digital Logic
- Reverse Battery Protection
- Activate with Small, Commercially Available Permanent Magnets
- Solid-State Reliability
- Small Size
- Resistant to Physical Stress
