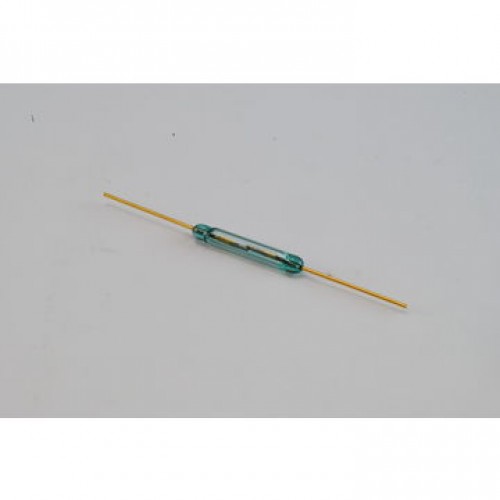

Product Images are shown for illustrative purposes only and may differ from actual product.

MKA10110 Reed Sensor


Write a review | 0 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-04-12

  • Brand: Generic
  • SKU: 1188 | DAA671

Availability: InStock priceValidUntil: 2026-04-12

  • Rs. 35.40 (inc GST)
    Rs.30.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MKA10110 Reed Sensor

MKA10110 Reed Switch-Reed Sensor

Reed switches also called as Reed Sensor is a electrical switch/sensor than can be operated by applying magnetic field. The magnetic field causes closure of the reed contacts. Upon removal of the magnetic field, contact open again due to the elasticity of the reeds.

A reed switch consists of two ferromagnetic nickel-iron wires and specially shaped contact blades (reeds) positioned in a hermetically sealed glass capsule with a gap between them and in a protective atmosphere. The glass capsule is filled with inert gas to prevent activation of the contacts. The ruthenium or rhodium plated contact surfaces are isolated from the outside environment, which protects the contacts from contamination.

Features of MKA10110 Reed Sensor

  • Max. Contact Rating : 10 W

  • Max. Switching Voltage : 100 VDC

  • Max. Switching Voltage : 150 VDC

  • Max. Switching Current : 0.5 A

  • Max. Initial Contact Resistance : 100 mΩ

  • Min. Insulation Resistance : 109 Ω

  • Max. Operate time : 0.5 ms

  • Max. Release time : 0.3 ms

  • Min. Resonant Frequency : 5000 HZ

  • Max. Operating Frequency : 400 HZ

  • Pull in Value : 8-30 AT

  • Min. Drop out Value : 4 AT

  • Max. Contact Capacitance : 0.5 pF

  • Test Coil

            -Number of turns 5000T

            -Resistance 580Ω

Features of Reed Switch

  • Compact size,

  • Low weight,

  • Quick response time,

  • Long life,

  • Low cost.

Applications of Reed Switch

  • Reed relays,

  • Automotive sensors,

  • Security systems,

  • Robotics,

  • Toys and games.

Related Document

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
