SN04-N Inductive Proximity Sensor

  • Stock: 14
  • SKU: 1627 | DAB065
  • Rs. 159.30 (inc GST)
    Rs.135.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

SN04-N Inductive Proximity Sensor

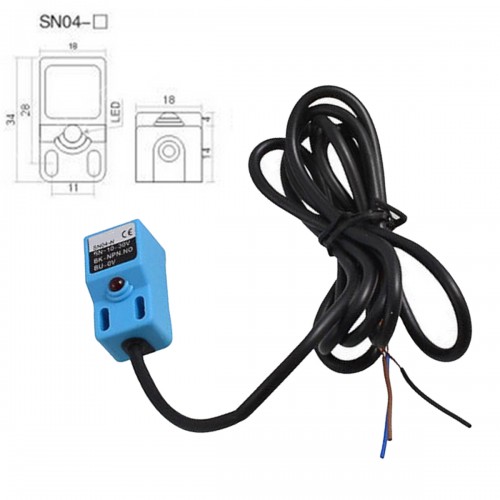

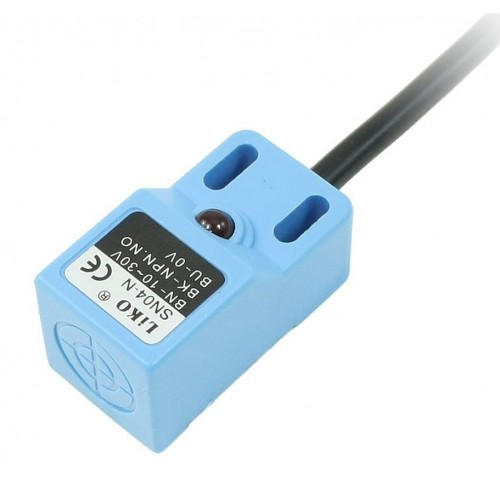

SN04-N 5mm NPN Type Inductive Proximity Sensor

This is a NPN type Inductive Proximity Sensor also called as proxy switch which can be used to detect metal upto 5mm. The distance may vary according to metal size. This is a Square Type low cost water proof and dust proof proximity sensor with LED indicator and easy Mounting.

SN04-N Sensor is very easy to use can be used with PLC for CNC applications.

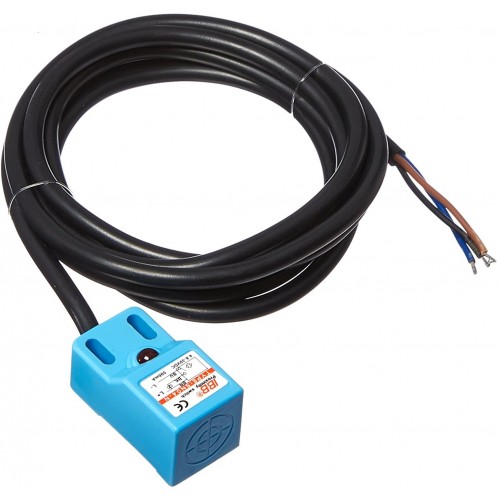

Sensor Pinouts :

  • Brown : +VDD
  • Blue : GND
  • Black : Signal

Specification SN04-N Inductive Sensor

  • Output :  NPN NO
  • Operating Voltage : 12 to 24 Volt DC
  • Current Consumption :  <8mA
  • Reverse polarity protection YES
  • Output
  • Function Normally Open
  • Load Current 200 mA max.
  • Frequency 600Hz
  • Sensing Range
  • Rated Distance 5 mm
  • Recommended Distance 3.2 mm
  • Hysteresis 10% of Sensing Range
  • Environment Ratings
  • Ambient Temperature -20~+70°C

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
