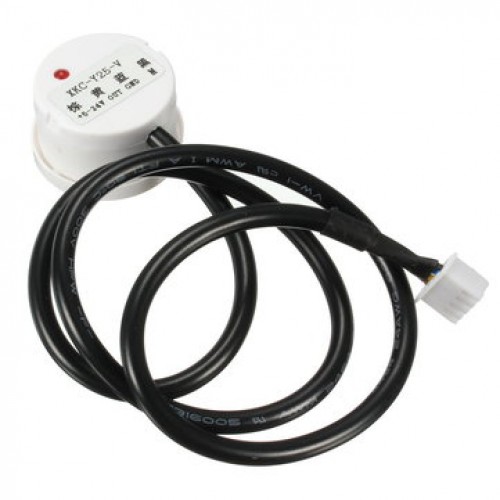

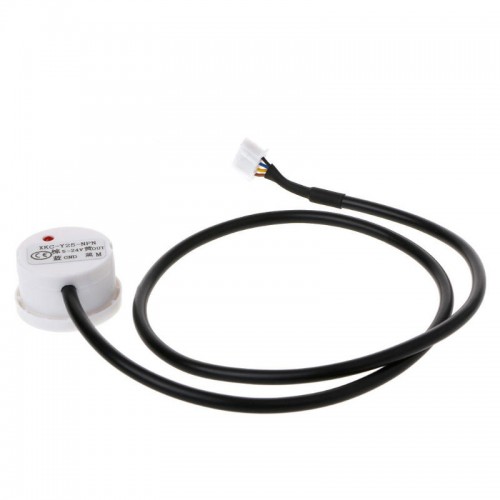

Liquid level sensor does not get simpler than this. This is very easy to use water level sensor. It can work with other liquids as well. The output is digital and so can be directly interfaced to Arduino, Raspberry Pi or any Microcontroller.

Non-contact liquid level sensors (hereinafter referred to as liquid level sensors) adopt advanced signal processing technology and high-speed signal processing chips to eliminate the influence of container wall thickness and truly non-contact detection of the liquid level in sealed containers.

The level sensor (probe) is installed on the upper and lower sides of the outer wall of the measured container (high and low level of the liquid level). The non-metallic container does not need to be opened. It is easy to install and does not affect production.

It can realize the detection of various toxic substances, strong acids, alkali and various liquids in high-pressure sealed containers.

Note: Works only for non-metalic medium wall container shell.

Features of Non Contact Liquid Level Sensor

• The non-contact liquid level sensor does not need to be in direct contact with the liquid and will not be corroded by corrosive liquids such as strong acids and alkalis, and will not be affected by scales or other foreign matter.
• The detection is accurate and stable, and the boiling water can be detected.
• Pure electronic circuit structure, non-mechanical working methods, stable performance and long life.
• High stability, high sensitivity, high interference capacity, no external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5~24V power adapters on the market.
• Strong compatibility, through a variety of non-metallic materials containers, such as plastic, glass, ceramics and other containers, the sensing distance of up to 12mm; liquid, powder, particulate matter can be detected.
• Open collector output method, wide voltage range (5 to 24 Volts), suitable for connecting various circuits and product applications.

Specifications:

• Input Voltage (In VCC) DC 5 to 24 Volts
• Consumption current 5mA
• Output Voltage (High Level) VCC
• Output voltage (low level) 0 Volts
• Output current 1~50mA
• Response time 500mS
• Working environment temperature 0~100°C
• Sensing thickness (sensitivity) range 0~20mm (promising in 12mm)
• Humidity 5%~100%

• Material ABS
• Waterproof performance IP67

Pin Definition:

• 5 - 24 Volts : Input voltage
• Out : Output signal, output singal current 2mA
• GND : Ground 0V
• M : Mode select out of output TTL signal

Additional Information

• Weight : 0.025 kg
