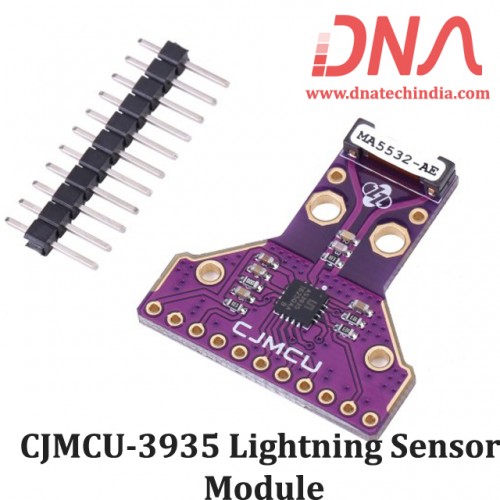

CJMCU-3935 Lightning Sensor Module

  • Stock: 1
  • SKU: 1723 | DAA855
  • Rs. 4,130.00 (inc GST)
    Rs.3,500.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

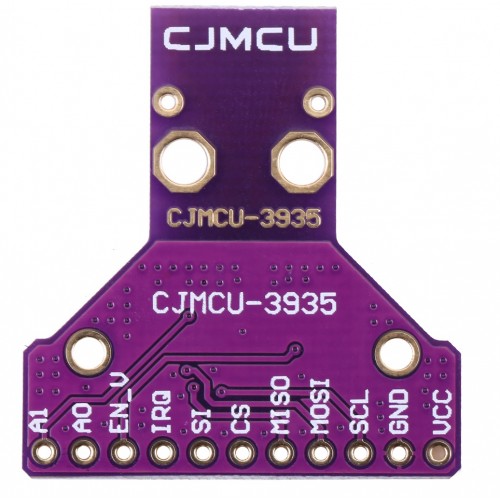

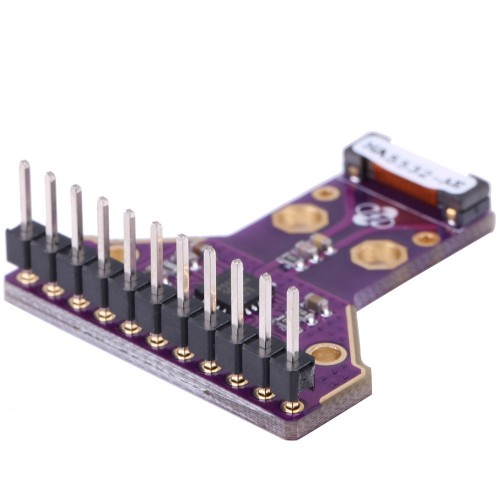

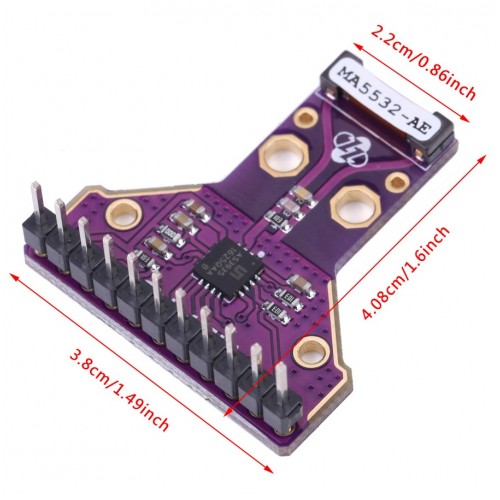

CJMCU-3935 AS3935 Lightning Sensor Module

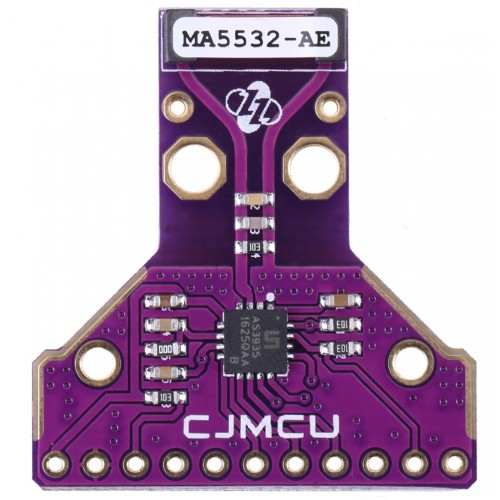

CJMCU-3935 Module is based on AMS AS3935 Franklin Lightning Sensor IC.

The Franklin Lightning Sensor™ is the world’s 1st lightning sensing IC that was designed for low power, portable or fixed wire-line applications. Utilizing a sensitive RF receiver and integrated proprietary algorithm, the Franklin Lightning Sensor™ detects the electrical emissions from lightning activity and then provides for an estimation of the distance to the head of the storm from 40km away down to 1km, while rejecting disturbances from man-made signals such as motors and microwave ovens. This advanced warning capability alerts users so that precautions can be taken.
The AS3935 is a fully integrated and programmable radar sensor IC that detects the presence and proximity of potentially dangerous radius activity in the immediate vicinity and provides an estimate of the distance to the storm head. The built-in lightning algorithm checks the received signal pattern to reject potential disturbances caused by man.
The AS3935 can also provide information on the noise level and inform the external unit (e.g. microcontroller) in case of high noise conditions, with the noise generator and noise floor blocks.
The AS3935 can be programmed via a 4 wire SPI standard. In addition, in case the latter is chosen, it is possible to choose between four different addresses. Two clocks are generated internally by two different RC oscillators: TRCO and SRCO. An automatic procedure can increase the accuracy of these oscillators. The AS3935 can be supplied by an internal voltage regulator or directly by the VDD.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Feature of CJMCU-3935 lightning sensor Module

  • Lightning sensor alerts on lightning storm activity within a 40 km radius
  • Storm head distance estimate up to 1 km in 14 steps
  • Detects cloud flashes to ground and intra-cloud (cloud to cloud)
  • Built-in algorithm artificial disturbance rejection
  • Programmable sensing levels allow threshold setting for optional controls
  • The SPI and IIC interface is used to control and record the reading
  • Spinning antenna to compensate for variations of external components
  • Supply voltage range : 2.4-5.5 Volt
  • Mode Off, listen and active
  • Package : 16LD MLPQ (4x4mm)

Applications of AS-3935 lightning sensor Detector

  • AS3935 is ideal for weather stations, clocks, sports equipment, laptops, swimming pool Security, uninterruptible power supply (UPS), global positioning system (GPS) cell phones, watches and golf equipment.

Related Links

Related Video

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
