Water Rain Drop Sensor
- Stock: 59 InStock
- SKU: 0498 | DAA826
-
Rs.
51.33 (inc GST)
Rs.43.50 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |

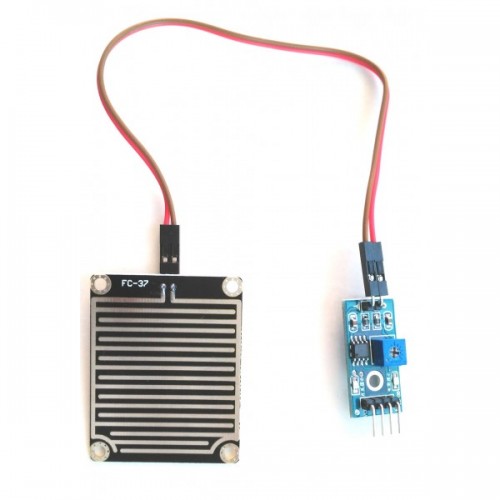

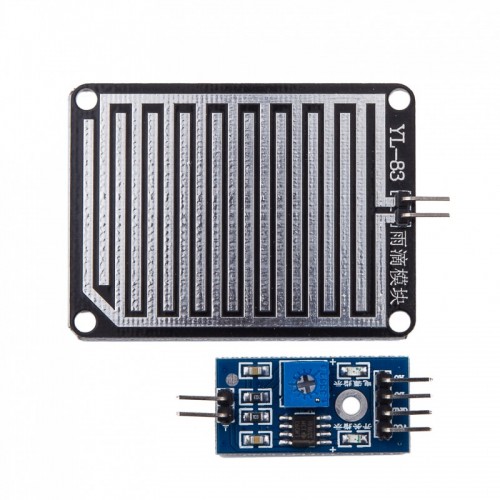

Water Rain Drop Sensor
This rain sensor module is an easy tool for rain detection.
It can be used as a switch when raindrop falls through the raining board and also for measuring rainfall intensity. The module features, a rain board and the control board that is separate for more convenience, power indicator LED and an adjustable sensitivity though a potentiometer.
The analog output is used in detection of drops in the amount of rainfall. Connected to 5V power supply, the LED will turn on when induction board has no rain drop, and DO output is high. When dropping a little amount water, DO output is low, the switch indicator will turn on. Brush off the water droplets, and when restored to the initial state, outputs high level.
Specifications of Rain Sensor
- High quality of RF-04 double sided material.
- Area : 5 cm x 4 cm nickel plate on side,
- Anti-oxidation, anti-conductivity, for long use time.
- Potentiometer adjust the sensitivity;
- Working voltage 5 volts
- Output format : Digital switching output (0 and 1) and analog voltage output AO;
- With bolt holes for easy installation;
- Small board PCB size : 3.2cm x 1.4cm;
- Uses a wide voltage LM393 comparator
Pin Configuration of Rain Sensor Board
- VCC : 5V DC
- GND : ground
- DO : high/low output
- AO : analog output
