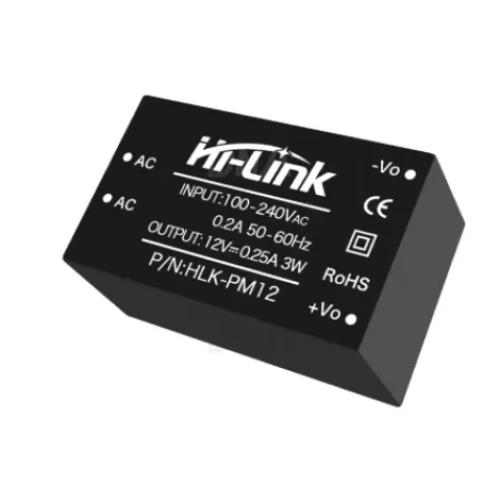

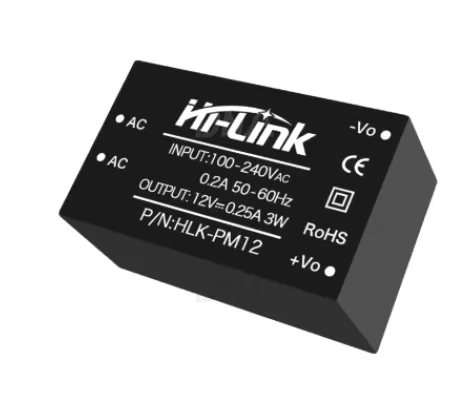

HLK-PM12 AC to DC 3 Watts 12 Volt Module

  • Stock: 3
  • Brand: Hi-Link
  • SKU: 0671 | DAB334
  • Rs. 292.64 (inc GST)
    Rs.248.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

HLK-PM12 12 Volt 3Watt Power Module

HLK-PM012 12 Volts, 3 watt PCB Mounting isolated Power Supply Module

HLK-PM012 12 volts 3 watt compact plastic enclosed isolated Power Supply Module. HLK-PM012 from Hilink is a isolated switching step-down power supply module and can supply 5 volts DC from 120 Volts to 230 Volts AC input and has a power rating of 3 watts.

This compact size power module makes it perfect to use in places where size is a constraint. HLK AC to DC power supply modules is a compact PCB mountable plastic enclosed power supply module. HLK-PM03 Power Supply Module replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer.

HLK Power Supply modules are perfect solutions if you want your power supply on PCB. Hi-link AC to DC Power supply modules are widely used in various applications like smart homes, communication equipments, automation and control and various other industries.

DNA Solutions has various ratings of Hi-Link power suppy modules. Check our complete list of Hi-Link Power supply Modules.

Features of HLK-PM12 Power Module

  • Meet UL, CE requirements,

  • Ultra-thin, ultra-small

  • All voltage input (AC: 90 ~ 264V)

  • Low ripple and low noise

  • Output overload and short circuit protection

  • High efficiency, high power density

  • The product is designed to meet the requirements of EMC and Safety Test

  • Low power consumption, environmental protection, no-load loss <0.1W

  • 100% load aging and testing

  • Operation Temperature -20—+60

  • Store Temperature -40—+80 ?

  • Relative humidity 5—95 %

  • Cooling way by radiation

  • Atmospheric pressure 80—106 Kpa

  • Sea level elevation =2000 m

  • Rated input voltage 100-240 VAc

  • Input voltage range 90-264 VAc

  • Maximum input current =0.2 A

  • Input current surge =10 A

  • maximum input voltage  =270 VAc

  • Enter slow start =50 mS

  • Input Low Voltage Efficiency Vin=110VAc,Output full-load=69 %

  • Input High Voltage Efficiency Vin=220VAc,output full-load=70 %

  • Long-term reliability MTBF=100,000 h
