• MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

Product Images are shown for illustrative purposes only and may differ from actual product.

MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

  • Stock: Out Of Stock
  • SKU: 7581 | DAH309

Availability: NotInStock priceValidUntil: 2025-10-13

  • Rs. 1,596.54 (inc GST)
    Rs.1,353.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

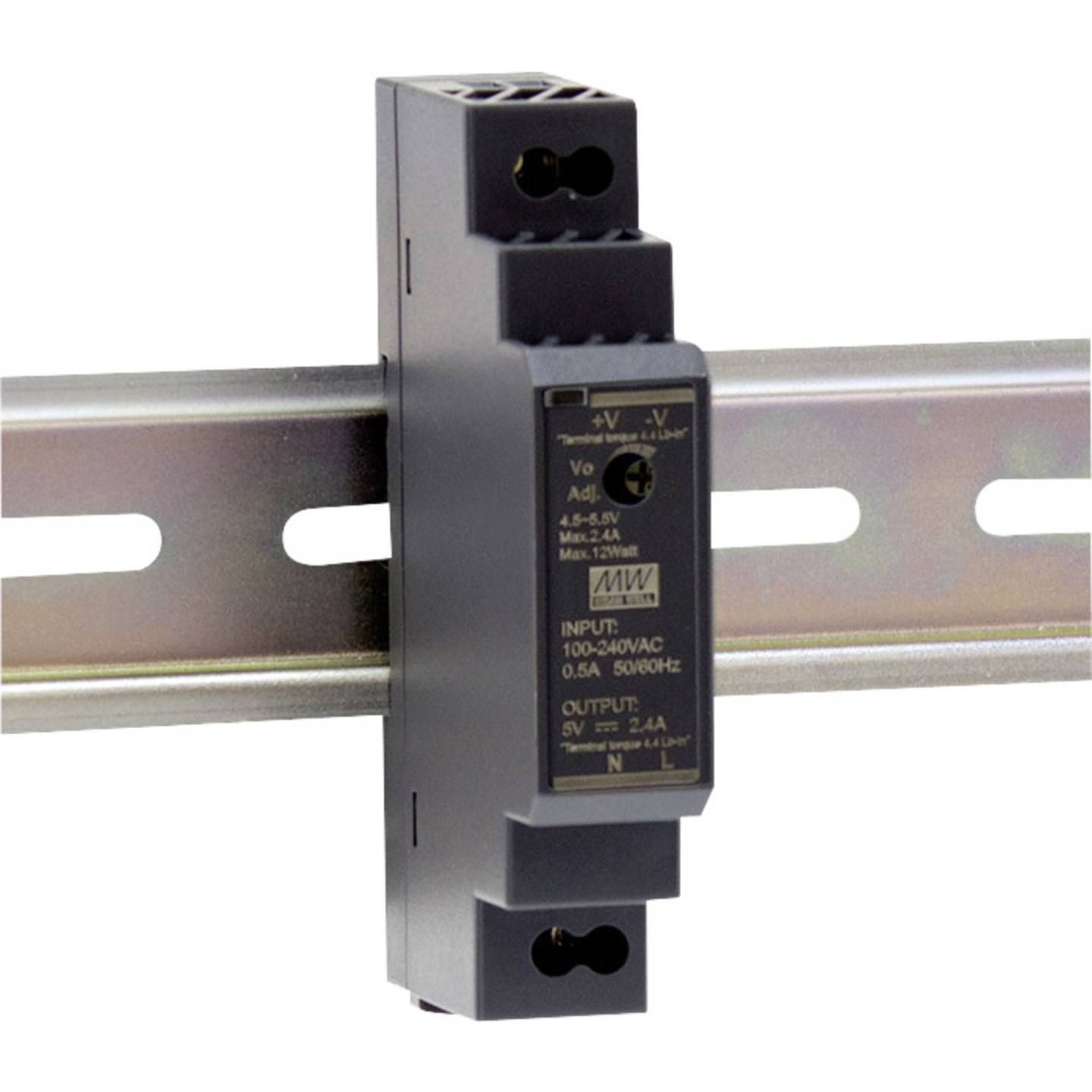

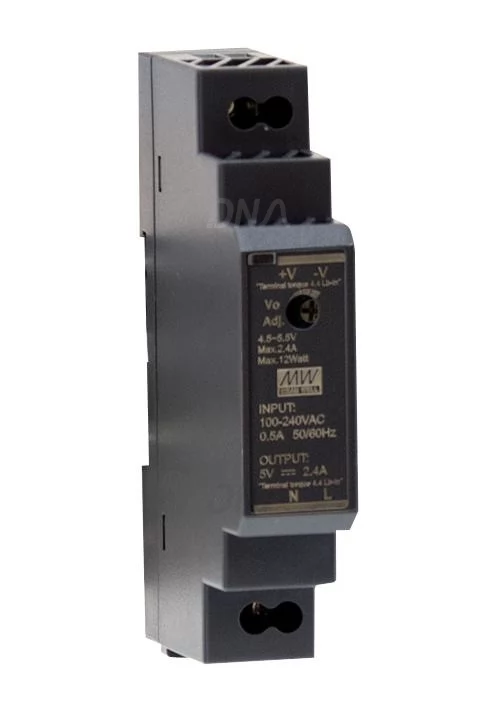

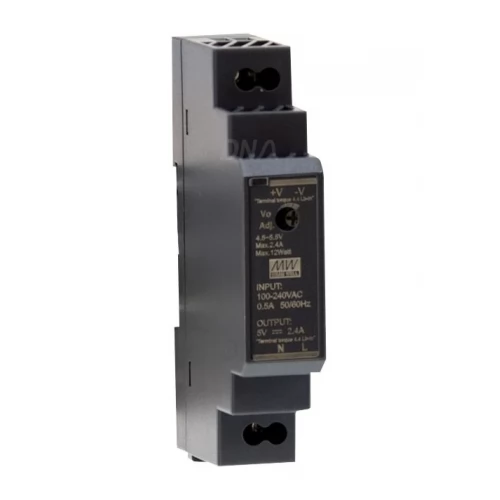

The HDR-15-5 is a 15W, single-output AC-DC power supply with a universal AC input range of 85–264VAC and can also operate with 120–370VDC. It is enclosed in a plastic housing that can easily mount on a DIN rail (TS-35/7.5 or TS-35/15). With its low-profile design, it is ideal for space-constrained installations. The power supply features a Class II design (no FG, grounding required), offering protection against electrical shocks. It belongs to the HDR series, which is known for its compact form factor, high efficiency, and reliability.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

  • Ultra-slim design: 17.5mm width for space-saving installation.
  • Universal AC input: Accepts input voltages from 85VAC to 264VAC.
  • DC output: Delivers a 5V DC output at 2.4A, suitable for low-voltage electronics.
  • High efficiency: Up to 84% energy efficiency, reducing power consumption and heat generation.
  • Low no-load power consumption: Less than 0.3W.
  • Protections: Includes protections for short circuit, overload, and over-voltage, enhancing its reliability and durability.
  • Compliance: Meets international safety standards and is compliant with EN61000-3-2, Class A and EN55022, Class B for EMI.

Specifications of MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

  • Input Voltage Range: 85–264VAC / 120–370VDC.
  • Output Voltage: 5V DC.
  • Output Current: 2.4A.
  • Power Output: 15W.
  • Efficiency: Up to 84%.
  • Ripple & Noise: 80mVp-p.
  • Voltage Adjustment Range: 4.75V–5.5V.
  • Operating Temperature: -30°C to +70°C (with derating).

    Package Includes

    • 1 x MEANWELL HDR-15-5 15W AC-DC DIN Rail Power Supply

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
