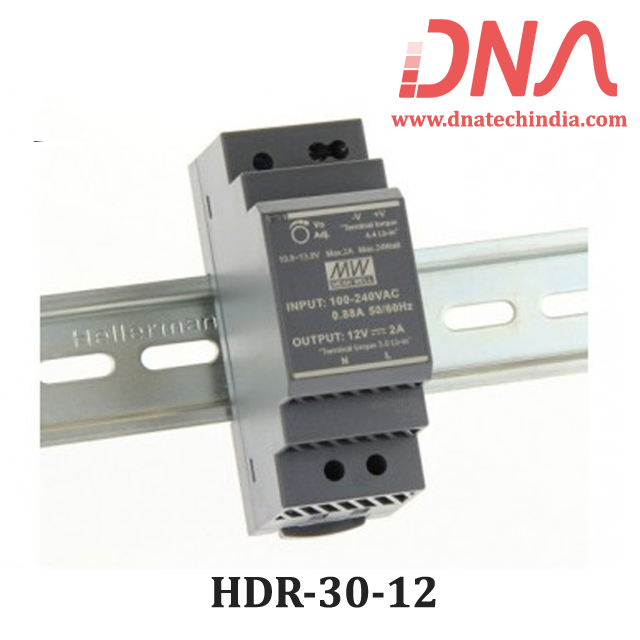

Meanwell SMPS HDR-30-12

  • Stock: 1
  • Brand: Meanwell
  • SKU: 2508 | DAC672
  • Rs. 1,519.08 (inc GST)
    Rs.1,287.36 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

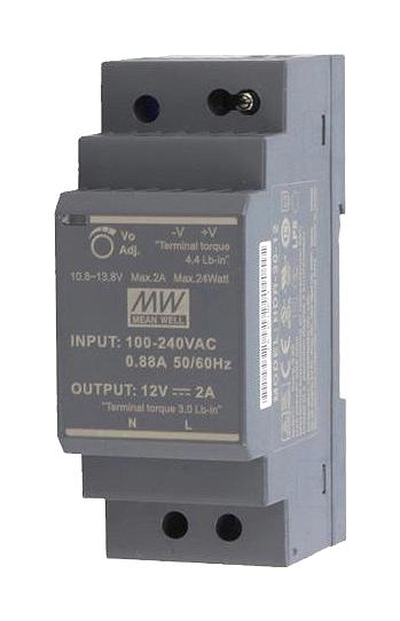

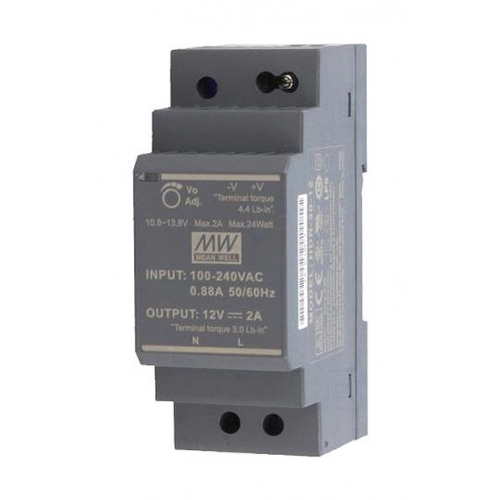

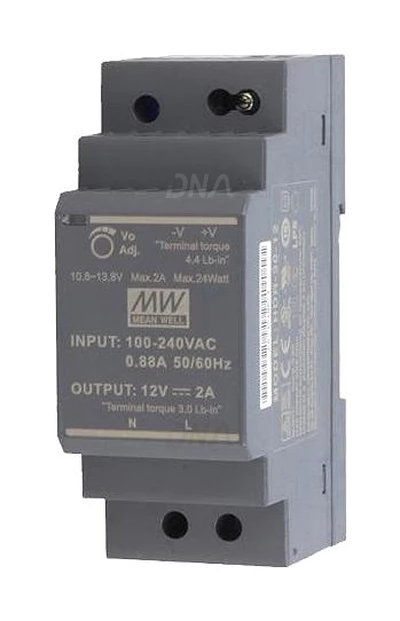

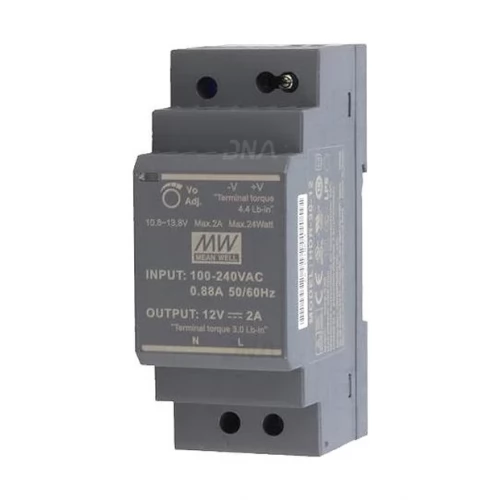

Meanwell HDR-30-12 Power Supply

12 Volts, 30 Watt Din Rail Mounting Power Supply from Meanwell

HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 35mm(2SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.

HDR-30-12 is a high quality Industrial Grade SMPS fom Meanwell. HDR-30-12 SMPS is a 30 watt SMPS and gives 12 volts output. Meanwell HDR-30-12 switching power supply comes in mesh type casing and is very easy to mount.

Check out our Complete variety of Meanwell SMPS that we have.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HDR-30-12 Meanwell SMPS

  • Protections : Short circuit / Overload / Over voltage / Over temperature
  • Universal AC input / Full range
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105  long life electrolytic capacitors
  • Withstand 300 VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • Specification for HDR-30-12 Meanwell Power Supply

    OUTPUT

    Wattage

    Voltage

    Max Current

    24 Watt

    12 Volts

    2 Ampere

    INPUT

    Efficiency

    Frequency Range:

    88 %

    47 ~ 63Hz

    PROTECTION

    Overloaded

    Over Volt

    110 ~ 150% Rated Output Power.

    15 ~ 18 Volts

    ENVIRONMENT

    Working Temp:

    Working Humidity:

    Storage Temp:

    Vibration:

    -30 ~ +70°C

    20 ~ 90% RH non-condensing

    -40 ~ +85, 10 ~ 95% RH

    10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
