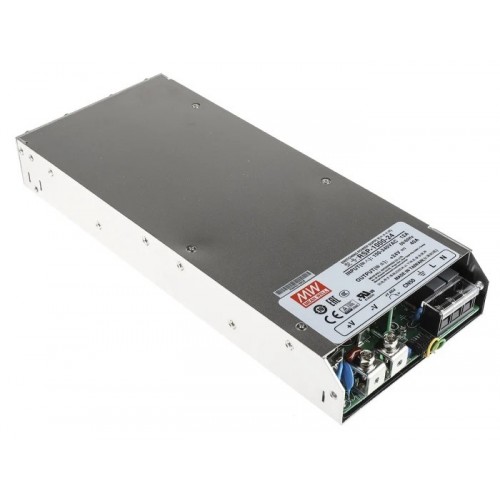

Meanwell RSP 1000-12 1000W AC-DC Power Supply with Single Output SMPS
- Stock: Out Of Stock NotInStock
- SKU: 7533 | DAG235
-
Rs.
22,037.68 (inc GST)
Rs.18,676.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Meanwell RSP 1000-12 1000W AC-DC Power Supply with Single Output SMPS
Meanwell RSP 1000-12 1000W AC-DC Power Supply with Single Output SMPS
The RSP-1000-12 offers a 12V output at 83.4A with a total power of 1000W, making it suitable for a wide range of industrial applications such as factory automation, equipment requiring high power, and other systems. The power supply is designed with a universal AC input and supports both remote on/off control and remote sensing to maintain high output accuracy. It includes forced air cooling via a built-in fan, ensuring proper thermal management even under heavy loads. The Mean Well RSP-1000-12 is a high-performance 1000W single output switch mode power supply designed for industrial applications requiring high power and reliability.
DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of Meanwell RSP 1000-12 1000W AC-DC Power Supply with Single Output SMPS
- High Power Density: Delivers 1000W of power in a compact form factor with a low-profile design (1U height).
- Universal AC Input: Operates within an input voltage range of 90 to 264VAC and 127 to 370VDC, making it compatible with global power standards.
- High Efficiency: Achieves efficiency levels of up to 88%, reducing energy consumption and heat generation.
- Active Power Factor Correction (PFC): Built-in active PFC function to ensure compliance with international harmonic standards.
- Forced Air Cooling: Includes a built-in, temperature-controlled fan that adjusts speed based on load to ensure efficient cooling.
- Remote Control Functions: Features remote on/off control, remote sense, and DC OK signal for monitoring and control in industrial systems.
Specifications of Meanwell RSP 1000-12 1000W AC-DC Power Supply with Single Output SMPS
- Input Voltage: 90-264VAC, 127-370VDC
- Output Voltage: 12V DC
- Output Current: 60A
- Output Power: 1000W
- Efficiency: Up to 88%
- Power Factor: 0.95/230VAC, 0.98/115VAC
- Dimensions: 295 x 127 x 41mm
- Cooling: Forced air by built-in fan with fan speed control
Package Includes
- 1 x Meanwell RSP 1000-12 1000W AC-DC Power Supply with Single Output SMPS
