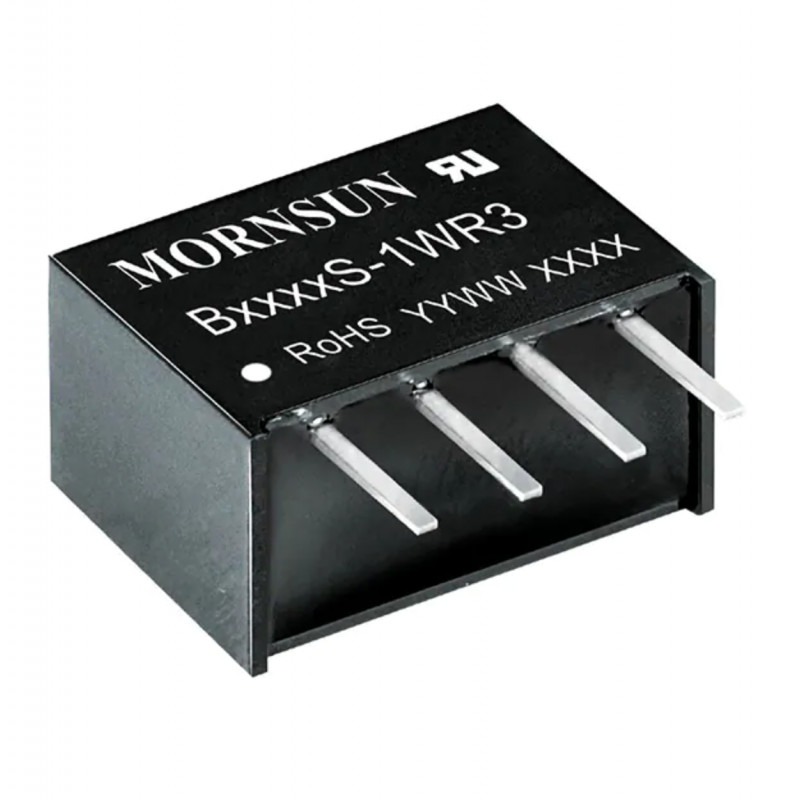

MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module

Name: MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module
Brand: Mornsun
SKU: DAG759
Price: 179.36 INR
Availability: OutOfStock
Rating: 2.5 (2 reviews)

Write a review | 2 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-22
Brand: Mornsun
SKU: 4019 | DAG759

Rs. 179.36 (inc GST)
Rs.152.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module

B2424S-1WR3 is a 1 W isolated DC/DC converter with a 21.6–26.4 VDC input, 24 VDC unregulated output and 1500 VDC isolation.

The MORNSUN B2424S-1WR3 is a 1 W isolated DC/DC converter that converts a nominal 24 VDC input to a single 24 VDC output. Its output is unregulated, so it suits circuits that can work with an unregulated supply. The module provides input-to-output isolation for 24 V power systems.

Its four-pin design uses an industry-standard pinout to support board-level integration. Continuous, self-recovering short-circuit protection helps the module return to operation after a short circuit clears. The compact module measures 11.60 × 6.00 × 10.16 mm.

Use this isolated 24 V converter module in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits. It can also serve distributed power systems that need an isolated voltage.

DNA supplies MORNSUN power modules for electronics projects and production needs. Explore our range of DC to DC Converter Modules for isolated power conversion. Check other DC to DC Converter Modules that we have in stock

For Indian electronics buyers, DNA can help source parts you cannot find in our listings. Ask us about import support and retail or bulk orders for converters, SMPS, IGBTs, connectors and other components. Contact Us

Features of MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module

Input-to-output isolation
Fixed input with a single unregulated output
Continuous, self-recovering short-circuit protection
Industry-standard pinout

Specifications of MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module

Rated output power: 1 W
Input voltage: 21.6–26.4 VDC
Output voltage: 24 VDC nominal, unregulated
Output current: 5 mA minimum, 42 mA maximum
Full-load efficiency: 75% minimum, 81% typical
Input-to-output isolation voltage: 1500 VDC minimum, 1-minute test
Operating temperature: −40°C to +105°C, with derating from 85°C
Package and dimensions: Four-pin module, 11.60 × 6.00 × 10.16 mm

Applications of MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module

Pure digital circuits
Low-frequency analog circuits
Relay-driven circuits
Data switching circuits

Package Includes

1 X MORNSUN B2424S-1WR3 Isolated DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
