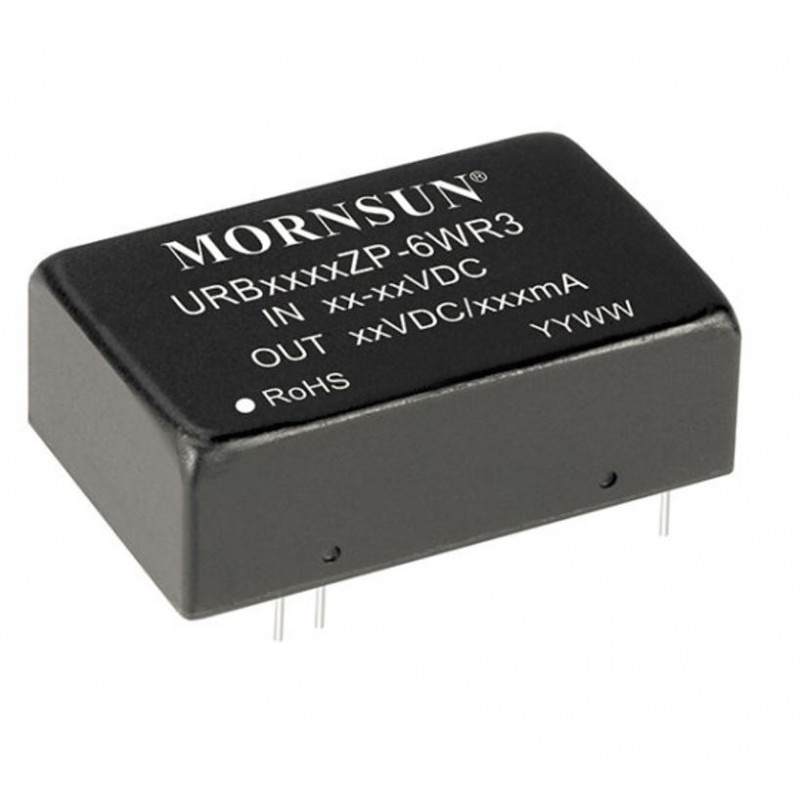

Mornsun URB2412ZP-6WR3 6 W Isolated DC-DC Converter Module

Mornsun URB2412ZP-6WR3 converts 9–36 VDC input to a regulated 12 VDC, 500 mA output, with 6 W power and 1500 VDC isolation.

The Mornsun URB2412ZP-6WR3 is a 6 W isolated module that converts a 9–36 VDC input into a regulated 12 VDC single output. Its 500 mA rating suits systems that need a 12 V rail from a DC supply. The wide input range supports input variation while maintaining the required output.
Input-to-output isolation separates the two sides of the power system. Built-in protection handles input undervoltage, output overvoltage, overcurrent and short circuits. Its short-circuit protection is continuous and self-recovering. The DIP package and aluminum-alloy case suit board-level assembly.
Use this 12 V DC-DC converter in industrial control equipment, electric power systems, instruments, communication equipment and railway applications.
DNA stocks Mornsun products for Indian buyers seeking DC to DC Converter Modules for design, repair and production needs. Check other DC to DC Converter Modules that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders across India. We can also help source LCDs, Hongfa Relays, microcontrollers, connectors, crystals and super capacitors. Contact Us

Features of Mornsun URB2412ZP-6WR3 6 W Isolated DC-DC Converter Module

  • Isolated DC-to-DC conversion separates input and output sides
  • Wide input span supports varied DC source levels
  • Built-in input and output fault protection
  • Self-recovering short-circuit protection
  • DIP package with aluminum-alloy case

Specifications of Mornsun URB2412ZP-6WR3 6 W Isolated DC-DC Converter Module

  • Rated output power: 6 W
  • Input voltage range: 9–36 VDC, with a 40 VDC maximum input
  • Output voltage: 12 VDC
  • Maximum output current: 500 mA
  • Full-load efficiency: 83% minimum, 85% typical at nominal input voltage and rated output load
  • Input-to-output isolation test voltage: 1500 VDC minimum, 1-minute test
  • Operating temperature: −40°C to +85°C, with output power derating above 71°C
  • Package and dimensions: DIP, 32.00 × 20.00 × 10.80 mm

Applications of Mornsun URB2412ZP-6WR3 6 W Isolated DC-DC Converter Module

  • Industrial control
  • Electric power systems
  • Communication equipment
  • Railway applications

Related Links for Mornsun URB2412ZP-6WR3 6 W Isolated DC-DC Converter Module

Package Includes

  • 1 X Mornsun URB2412ZP-6WR3 6 W Isolated DC-DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
