ADG201A Quad SPST Switch

ADG201A is a monolithic CMOS device comprising four independently selectable switches.

They are designed on an enhanced LC 2MOS process which gives an increased signal handling capability of ±15 V. These switches also feature high switching speeds and low RON.

The ADG201A switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

Features of ADG201A SPST Switch

• 44 V Supply Maximum Ratings

• ± 15 V Analog Signal Range

• Low On-Resistance (60 max)

• Low Leakage (0.5 nA typ)

• Break-Before-Make Switching Action

• Extended Plastic Temperature

• Range (-40ºC to +85ºC)

• Low Power Dissipation (33 mW)

• TTL/CMOS Compatible

• Superior Second Source for

• DG201A/HI201

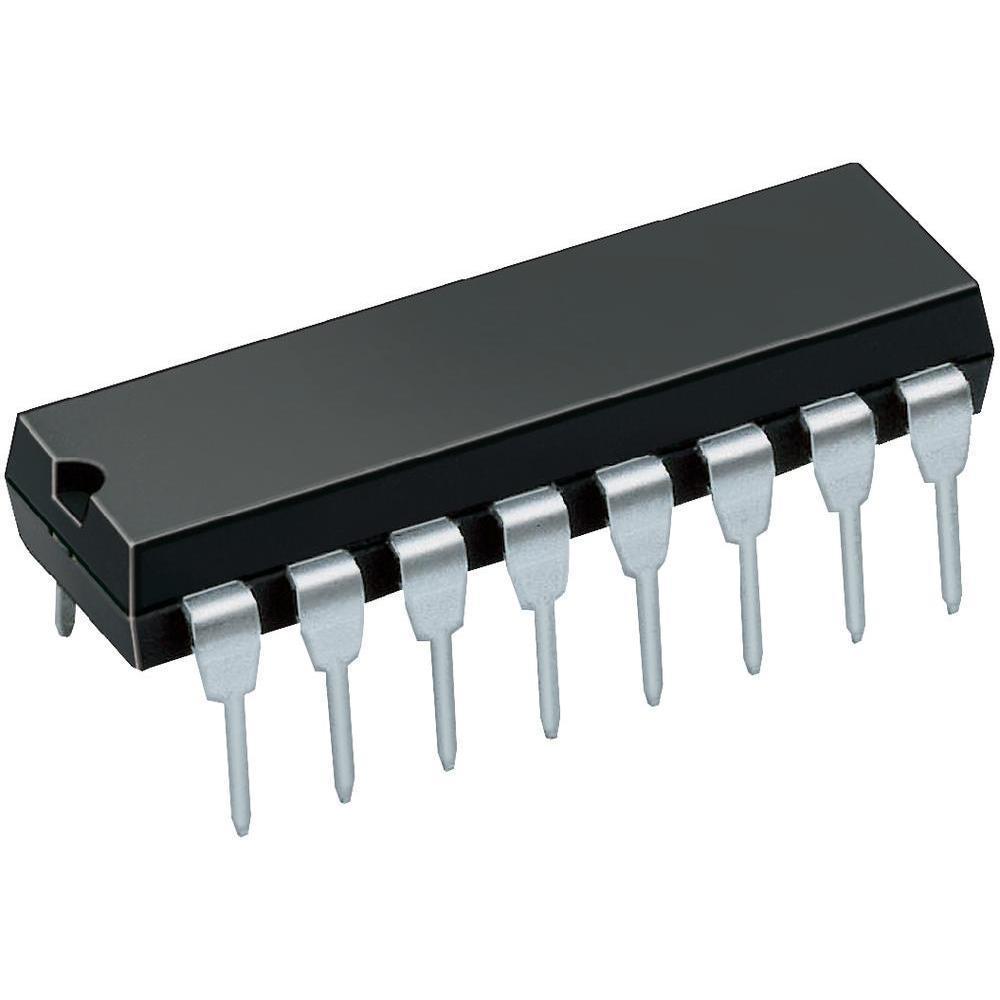

• 16-Lead DIP/SOIC Packages
