1Watt WHITE LED

  • Stock: 88
  • SKU: 1058 | DAB190
  • Rs. 18.88 (inc GST)
    Rs.16.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

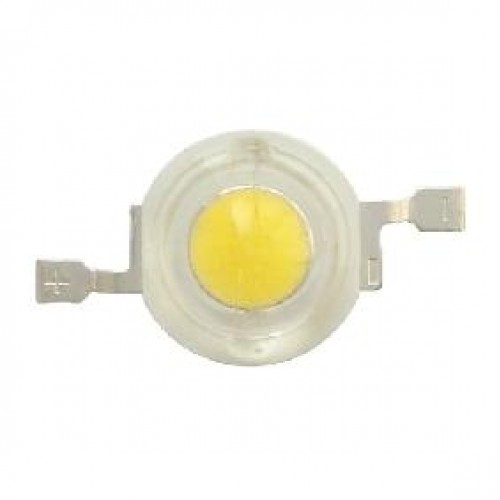

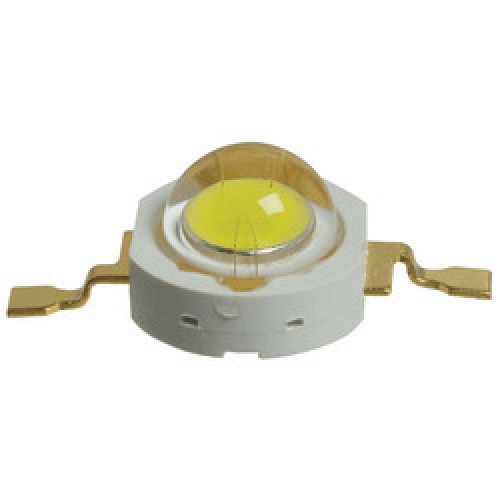

1Watt WHITE LED

1Watt 3-3.5 Volts LED Emitters which emits 280Lumens @400mA, Cool White 4750-7000K CCT (Color Corelation Temperature).

Power LEDs 1Watt is an excellent high power LED Emitter used for solid sate light applications. This LED emitter with silicon lens technology provides the good life and can be reflow soldered at 260°C. The light output decay less than 10% at severe stress conditions (400mA, 85°C ,85%RH) proves high reliability. Due to Phosphor technology the White and Warm white show good color stability (less than 50K shift with Tj at 100oC) Due to special lens design user gets uniform light with any secondary optics.

Features of White LED

  • Long life & low luminous decay

  • PB free & ROHS compliant

  • Great consistency

  • High reliability, no color difference

  • 7.5mm low power LED,1W.

  • Emitted Color : White

  • Viewing Angle : 115 degrees ~ 125 degrees

  • DC Forward Voltage (VF) : 3.2V ~ 3.8V

  • DC Forward Current (IF) : 350mA ~ 400mA

  • Luminous Intensity : 80mW ~ 90mW

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
