Futaba S3003 Servo Motor

  • Stock: 5
  • SKU: 1545 | DAC799
  • Rs. 354.00 (inc GST)
    Rs.300.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

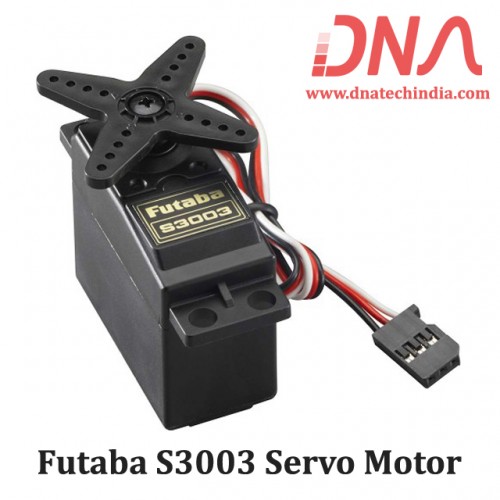

Futaba S3003 Servo Motor

Futaba S3003 Servo Motor is a decent servo for every hobbyist and electronics student.

The powerful motor is PWM controlled for easy interfacing. S3003 standard NIB servo for RC car plane. High torque analog servo. Stable and shock proof. Compliant with most standard receiver connector. Great for truck, boat, racing car, helicopter and airplane

Features of Futaba S3003 Servo Motor

  • Control System : +Pulse Width Control 1520usec Neutral
  • Required Pulse : 3-5 Volt Peak to Peak Square Wave
  • Operating Voltage : 4.8-6.0 Volts
  • Operating Temperature Range : -20 to +60 Degree C
  • Operating Speed (4.8V) : 0.23sec/60 degrees at no load
  • Operating Speed (6.0V) : 0.19sec/60 degrees at no load
  • Stall Torque (4.8V) : 44 oz/in. (3.2kg.cm)
  • Stall Torque (6.0V) : 56.8 oz/in. (4.1kg.cm)
  • Operating Angle : 45 Deg. one side pulse traveling 400usec
  • Continuous Rotation Modifiable : Yes
  • Direction : Counter Clockwise/Pulse Traveling 1520-1900usec
  • Current Drain (4.8V) : 7.2mA/idle
  • Current Drain (6.0V) : 8mA/idle
  • Motor Type : 3 Pole Ferrite
  • Potentiometer Drive : Indirect Drive
  • Bearing Type : Plastic Bearing
  • Gear Type : All Nylon Gears
  • Connector Wire Length : 12"
  • Dimensions : 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
  • Weight : 1.3oz. (37.2g)

Applications of Futaba S3003 Servo Motor

  • It is used in Electronic projects.
  • Robotic projects using 8051/AVR/PIC/ARM/NXP/Infineon microcontroller.

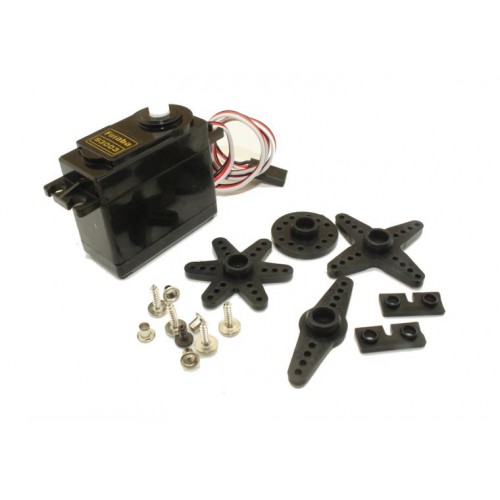

Package Includes

  • 1 x Futaba S3003 Servo Motor 3.2 KG Torque for Arduino/Raspberry-Pi/Robotics
  • 1 x Mounting accessories set.
