MCP3201 12-Bit ADC Module

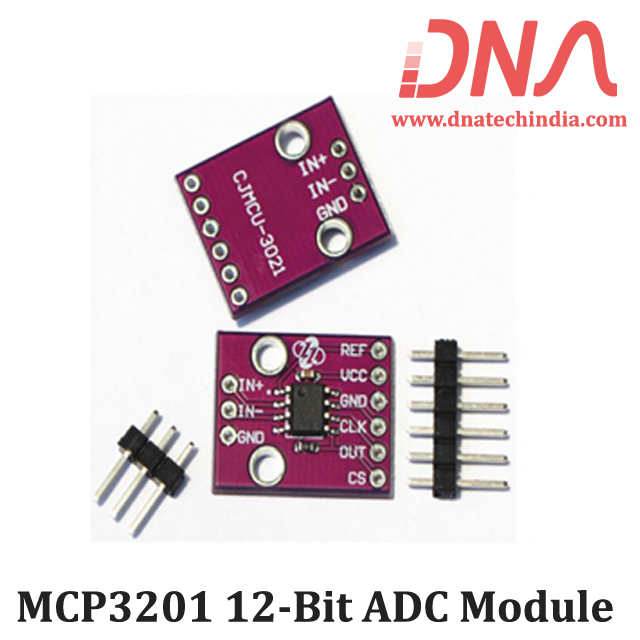

CJMCU-3021 MCP3201 12-Bit ADC Module

Microchip technology MCP3201 ADC is a successive approximation 12-bit analog-to-digital(A/D) converter with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C) version, Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capableof sample rates of up to 100 ksps at a clock rate of 16MHz. The MCP3201 device operates over a broad voltage range(2.7-5.5V). Low-current design permits operation with typical standby and active currents of only 500nA and 300uA, respectively.

Features CJMCU-3021 MCP 3201 12-Bit ADC

• 12-Bit resolution

• ±1 LSB max DNL

• ±1 LSB max INL(MCP3201-B)

• ±2 LSB max INL(MCP3201-C)

• On-chip sample and hold

• SPI serial interface(modes 0,0 and 1,1)

• Single supply operation : 2.7V-5.5V

• 100 ksps Maximum sampling rate at VDD=5V

• 50 ksps Maximum sampling rate at VDD=2.7V

• Low-Power CMOS technology

• 500nA typical standby current, 2uA maximum

• 400 uA maximum active current at 5V

• Industrial temp range :-40° to +85°

• 8-pin MSOP, PDIP, SOIC and TSSOP packages

Applications CJMCU-3021 MCP3201 12-Bit ADC

•  Sensor interface

•  Process control
