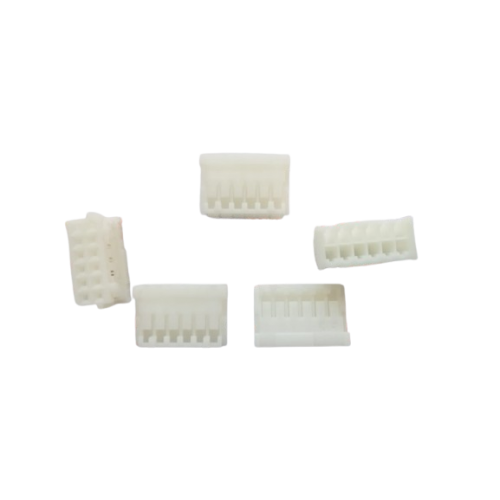

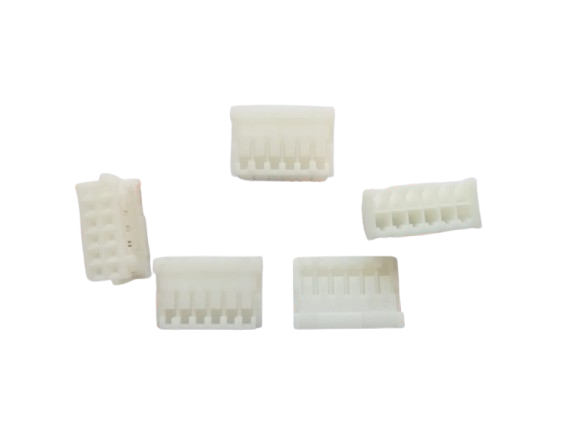

The DF1B-12DS-2.5RC is a 12-position dual-row female housing connector from the Hirose DF1B series, designed for wire-to-board and wire-to-wire connections with a 2.5 mm pitch. This housing is used with crimp-style female contacts and mates with corresponding Hirose male headers, forming a reliable, compact connector system. With its compact form factor and high contact reliability, this connector is commonly used in industrial control systems, automotive wiring, and consumer electronic devices. The secure locking system prevents accidental disconnection even in environments subject to vibration.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Connector Type: Wire housing (female socket)

• Number of Positions: 12 (2×6 dual-row layout)

• Contact Pitch: 2.5 mm

• Mounting Type: Free-hanging (in-line wiring)

• Locking Mechanism: Positive latch system for secure mating

• Polarization: Prevents incorrect insertion

• Material: UL94V-0 rated thermoplastic (flame-retardant)

• Terminals Required: Crimp-type DF1B contacts (sold separately)

Specifications of DF1B-12DS-2.5RC Headers And Wire Housings

• Rated Voltage: 250 V AC/DC

• Rated Current: Up to 3 A per contact

• Contact Resistance: ≤ 30 mΩ

• Insulation Resistance: ≥ 1000 MΩ at 500 V DC

• Withstanding Voltage: 650 V AC for 1 minute

• Applicable Wire Size: AWG 22–28 (depending on contact)

• Operating Temperature:-35°C to +85°C

Applications of DF1B-12DS-2.5RC Headers And Wire Housings

• Industrial Automation

• Automotive Systems

• Consumer Electronics

• LED Lighting Systems

Package Includes

      1 x DF1B-12DS-2.5RC Headers And Wire Housings
