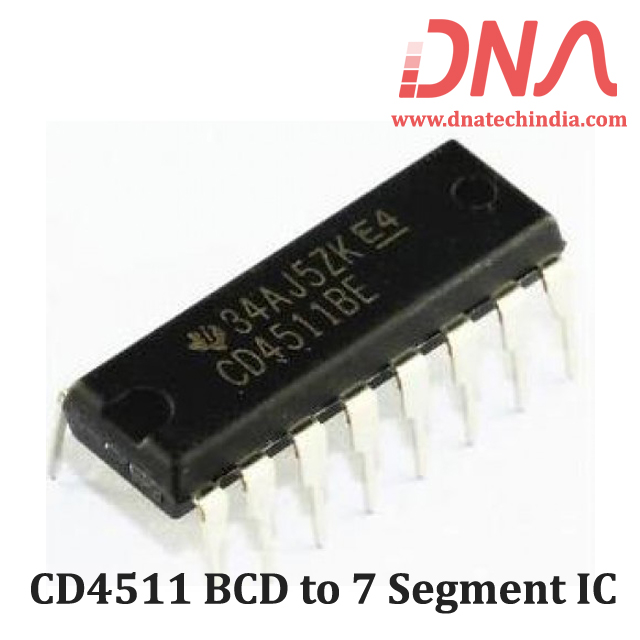

CD4511 BCD to 7 Segment IC

CD4511 BCD to 7 Segment Latch/Decoder/Driver

The CD4511 BCD-to-seven segment latch/decoder/driver is constructed with complementary MOS (CMOS) enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. The circuit provides the functions of a 4-bit storage latch, an 8421 BCD-to seven segment decoder, and an output drive capability.Lamp test (LT), blanking (BI), and latch enable (LE) inputs are used to test the display, to turn-off or pulse modulate the brightness of the display, and to store a BCD code, respectively. It can be used with seven-segment light emitting.

Diodes (LED), incandescent, fluorescent, gas discharge, or liquid crystal readouts either directly or indirectly. Applications include instrument (e.g., counter, DVM, etc.) display driver, computer/calculator display driver, cockpit display driver, and various clock, watch, and timer uses.

We have Various sizes of 4000 Series IC. Check out our complete collection of 4000 Series IC.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of CD4511 BCD to 7 Segment Latch/Decoder/Driver

  • Low logic circuit power dissipation
  • High current sourcing outputs (up to 25 mA)
  • Latch storage of code
  • Blanking input
  • Lamp test provision
  • Readout blanking on all illegal input combinations
  • Lamp intensity modulation capability
  • Time share (multiplexing) facility

 Specification Of CD4511 BCD to 7 Segment Latch/Decoder/Driver

  • Supply voltage ranges from 3v to 18v
  • Set-up-time is 150, 70, and 40ns at 5v, 10v, and 15v respectively
  • Strobe pulse width is 400, 160, and 100ns at 5v, 10v, and 15v respectively
  • Hold time is zero
  • 100% tested for quiescent current at 20v
  • Having high input current of 1uA (max.) at 18v
  • Maximum output current sourcing of 25mA
  • Operating temperature ranges from -40 °C to 85 °C
  • Storage temperature ranges from -65 °C to 150 °C
