Product Images are shown for illustrative purposes only and may differ from actual product.

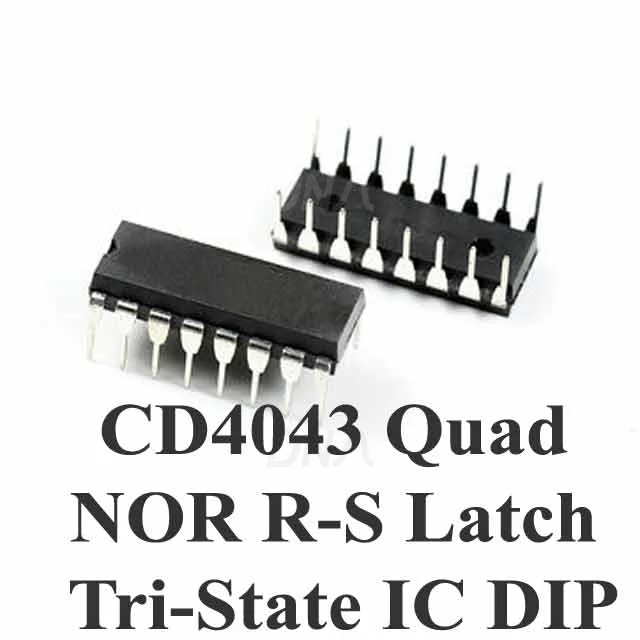

CD4043 Quad NOR R-S Latch Tri State DIP IC

Write a review | 0 reviews

Stock: 10

SKU: 3301 | DAD440

Rs. 35.40 (inc GST)
Rs.30.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

CD4043 Quad NOR R-S Latch Tri-State IC DIP

CD4043 Quad NOR R-S Latch Tri-State IC DIP

CD4043BMS types are quad cross-coupled 3-state CMOS NOR latches and the CD4044BMS types are quad cross-coupled 3-state CMOS NAND latches. Each latch has a separate Q output and individual SET and RESET inputs. The Q outputs are controlled by a common ENABLE input. A logic “1” or high on the ENABLE input connects the latch states to the Q outputs. A logic “0” or low on the ENABLE input disconnects the latch states from the Q outputs, results in an open circuit feature allows common busing of the outputs.

DNA solutions,Nashik has various types of Power IC's. Check out our complete collection of Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

High Voltage Types (20V Rating)
Quad NOR R/S Latch- CD4043BMS
Quad NAND R/S Latch - CD4044BMS
3 State Outputs with Common Output ENABLE
Separate SET and RESET Inputs for Each Latch
NOR and NAND Configuration
5V, 10V and 15V Parametric Ratings
Standardized Symmetrical Output Characteristics
100% Tested for Quiescent Current at 20V
Maximum Input Current of 1 microampere at 18V Over Full Package-Temperature Range
Noise Margin (Over Full Package Temperature Range)

Applications of CD4043 Quad NOR RS Latch Tri State IC

Holding Register in Multi-Register System
Four Bits of Independent Storage with Output ENABLE
Strobed Register
General Digital Logic
CD4043BMS for Positive Logic Systems
CD4044BMS for Negative Logic Systems

Package Includes

1X CD4043 Quad NOR R-S Latch Tri-State IC DIP

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
