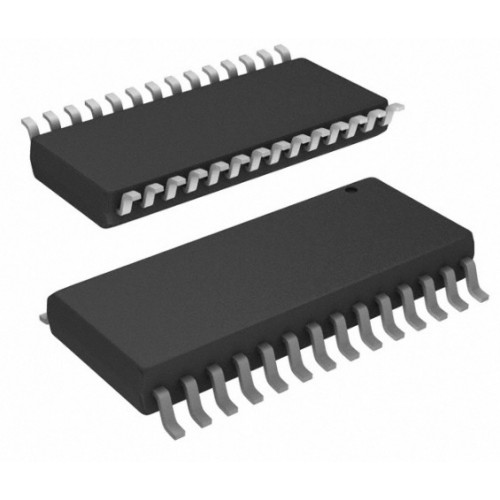

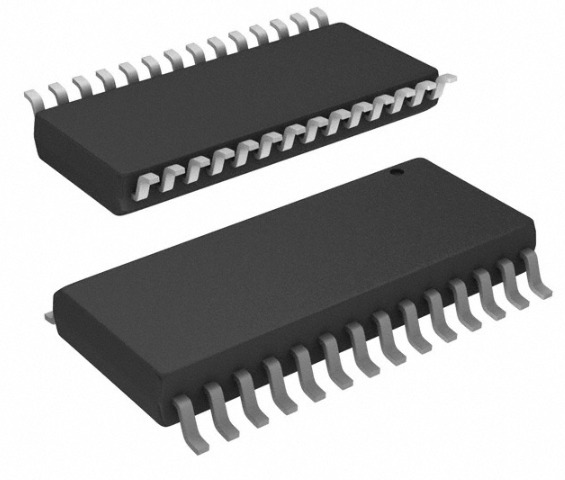

6EDL04I06PTXUMA1 Half Bridge Gate Driver IC


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-06-09

  • SKU: 7790 | DAH517

Availability: NotInStock priceValidUntil: 2026-06-09

  • Rs. 334.41 (inc GST)
    Rs.283.40 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

6EDL04I06PTXUMA1 Half Bridge Gate Driver IC

6EDL04I06PTXUMA1 Gate Driver IC for driving MOSFETs with integrated power management and high efficiency.

The 6EDL04I06PTXUMA1 is a three-phase gate driver IC designed for motor control applications. It drives MOSFETs efficiently, ensuring optimal performance in various systems. This IC features advanced protection mechanisms and precise dead-time control, enhancing reliability in demanding environments.

With a supply voltage range of 6.5V to 20V, the 6EDL04I06PTXUMA1 is suitable for industrial automation, automotive, and home appliance applications. Its TTL/CMOS compatibility allows seamless integration with various logic levels. The high-current outputs ensure robust performance for driving MOSFETs in power tools and drones.

This gate driver IC is built for durability, operating in temperatures from -40°C to 125°C. The 6EDL04I06PTXUMA1 meets the needs of modern electronic designs, providing a reliable solution for engineers and developers across India.

Explore the world of MOSFET & IGBT at DNA. The Brand offers reliable solutions for various applications. Check other MOSFET & IGBT that we have in stock.

At DNA, we cater to Indian electronics buyers. If you can't find specific components, we can import them for you. We support both retail and bulk orders. Check out our other items like Nextion Display, Development Module, and DC to DC Converter IC. Contact Us.

Features of 6EDL04I06PTXUMA1 Half Bridge Gate Driver IC

  • Integrated Power Management
  • High Efficiency
  • Protection Mechanisms
  • Interface TTL/CMOS
  • High-Speed Operation

Specification of 6EDL04I06PTXUMA1 Half Bridge Gate Driver IC

  • Product Type: Gate Driver IC
  • Supply Voltage (Vcc): 6.5V to 20V
  • Input Logic Levels: TTL/CMOS compatible
  • Output: High-current gate driver outputs for MOSFETs
  • Configuration: Three-phase motor driver
  • Operating Temperature Range: -40°C to 125°C

Applications of 6EDL04I06PTXUMA1 Half Bridge Gate Driver IC

  • Motor Control
  • Industrial Automation
  • Automotive
  • Home Appliances
  • Power Tools and Drones

Related Links for 6EDL04I06PTXUMA1 Half Bridge Gate Driver IC

Package Includes

  • 1 X 6EDL04I06PTXUMA1 Half Bridge Gate Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
