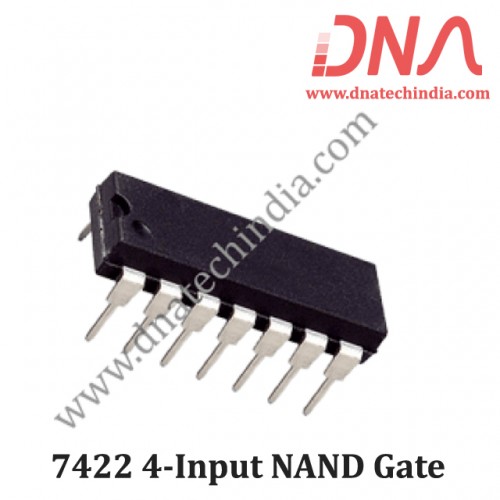

7422 4-Input NAND Gate

Write a review | 1 reviews

Stock: 26
Availability: InStock priceValidUntil: 2026-08-31
SKU: 73 | DAA273

Rs. 17.70 (inc GST)
Rs.15.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

7422 Dual 4-Input NAND Gate IC

7422 Dual 4-Input NAND Gate with open-collector output; supply voltage 5-7V; operating temperature 0°C to +70°C.

The 7422 Dual 4-Input NAND Gate IC serves as a fundamental component in digital circuits. This 7400 Series IC features two independent NAND gates, each with four data inputs, making it versatile for various logic operations. It operates on a supply voltage of 5 to 7V and can handle temperatures from 0°C to +70°C, ensuring reliable performance in different environments.

Engineers and hobbyists can utilize the 7422 Dual 4-Input NAND Gate IC for applications like digital signal processing, control systems, and more. Its open-collector output allows for easy interfacing with other components in your circuit. Whether you're designing a new project or repairing existing equipment, this IC is a dependable choice.

With a focus on quality and performance, the 7422 Dual 4-Input NAND Gate IC is available in various sizes within the 7400 Series IC. Explore our complete collection to find the perfect fit for your electronic needs.

Discover reliable solutions with DNA, a trusted retailer for the Brand/Manufacturer of 7400 Series IC's. Explore our selection of 7400 Series IC's to find the right components for your projects. Check other "7400 Series IC's" that we have in stock.

If you're searching for specific electronic components, reach out to us at DNA. We can help you find parts like LCDs, Hongfa Relays, Microcontrollers, IGBTs, Transistors, and Inductors. We also offer support in retail and bulk orders. Contact Us.

Features of 7422 Dual 4-Input NAND Gate IC

Dual 4-input NAND gates
Open-collector output
Wide operating voltage range 5-7V
High noise immunity
Low power consumption.

Specification of 7422 Dual 4-Input NAND Gate IC

Supply Voltage: 5-7V
Input Voltage: 5-7V
Operating Temperature: 0°C to +70°C
Storage Temperature: -65°C to +150°C.

Applications of 7422 Dual 4-Input NAND Gate IC

Digital signal processing
Control systems
Logic circuit design
Home automation
Industrial applications.

Package Includes

1 X 7422 Dual 4-Input NAND Gate IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
