  • MJE13003D NPN Power Transistor

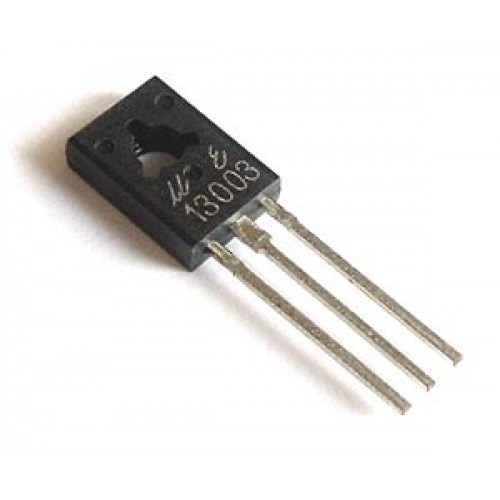

Product Images are shown for illustrative purposes only and may differ from actual product.

MJE13003D NPN Power Transistor

  • Stock: 25
  • SKU: 0563 | DAA143
  • Rs. 11.80 (inc GST)
    Rs.10.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MJE13003D NPN POWER TRANSISTOR

MJE13003D is HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR.

The UTC MJE13003D is a NPN Power Transistor. It is intended to be used in applications requiring medium voltage capability and high switching speeds.

FEATURES of MJE13003D NPN POWER TRANSISTOR

  • Fast-Switching And High Voltage Capability

  • Dynamic Parameters With Low Spread

  • High Reliability

  • Integrated Anti parallel Collector-Emitter Diode

  • Collector- Emitter Voltage (VBE =0) VCES=700 V

  • Collector-Emitter Voltage (I B =0) VCEO=400 V

  • Emitter-Base Voltage (IC=0, IB=0.75A, tP <10μS) VEBO=9 V

  • Collector Current IC=1.5 A

  • Collector Peak Current (tP <5ms) ICM=3 A

  • Emitter-Base Breakdown Voltage BVEBO IE =10mA, IC=0 is 9V(min), 18 V(max)

  • Base Current IB=0.75 A

  • Base Peak Current (tP <5ms) IBM=1.5 A

  • Collector-Emitter Sustaining Voltage VCEO (SUS) IC=10mA, IB=0=400
