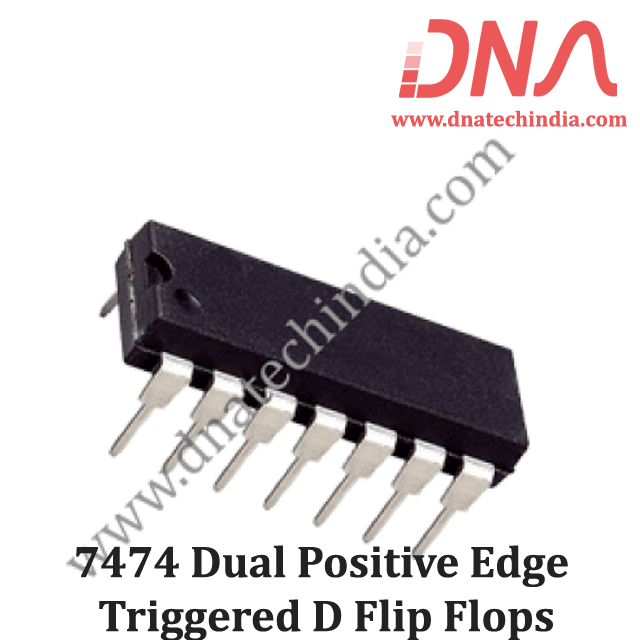

74HC74 Dual Positive Edge Triggered D Flip Flop

74HC74 D Flip Flop with Set, Reset, Clock inputs; CMOS compatible; Dual flip-flops for efficient data handling.

The 74HC74 Dual Positive Edge Triggered D Flip Flop is designed for reliable data storage and transfer. This component features two flip-flops, each equipped with Set, Reset, and Clock inputs, ensuring seamless data handling. The device is compatible with standard CMOS outputs and can work with LSTTL outputs when pull-up resistors are used. With its asynchronous Set and Reset inputs, this flip flop provides flexibility in circuit design.

Ideal for digital electronics applications, the 74HC74 Dual Positive Edge Triggered D Flip Flop allows information at a D-input to transfer to the Q output on the next positive clock edge. This feature makes it suitable for various projects, from simple circuits to complex systems. Enhance your electronic designs with this essential component for effective data management.

Available through DNA, the 74HC74 Dual Positive Edge Triggered D Flip Flop is part of the extensive 7400 Series IC's collection. Whether you are in Nashik or elsewhere in India, you can easily order this electronic component online or visit our local shop for immediate purchase.

Explore the reliability of the 7400 Series IC's from DNA. The 74HC74 Dual Positive Edge Triggered D Flip Flop is essential for your electronic projects. Check other '7400 Series IC's' that we have in stock.

If you need more electronic components, DNA can help. We support retail and bulk orders and can import parts if needed. Explore related items like Sensors, Crystals, Development Boards, LCDs, HMI Displays, and Programmers. Contact Us.

Features of 74HC74 Dual Positive Edge Triggered D Flip Flop

• Dual D flip-flops
• Asynchronous Set and Reset inputs
• CMOS and LSTTL compatible
• Positive edge-triggered operation
• Efficient data transfer

Specification of 74HC74 Dual Positive Edge Triggered D Flip Flop

• Supply Voltage: 2V to 6V
• Input Voltage: 0V to Vcc
• Maximum Clock Frequency: 50 MHz
• Storage Temperature: -65°C to +150°C

Applications of 74HC74 Dual Positive Edge Triggered D Flip Flop

• Data storage circuits
• Frequency dividers
• Shift registers
• Digital signal processing
• Control systems

Related Links for 74HC74 Dual Positive Edge Triggered D Flip Flop

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74HC74 Dual Positive Edge Triggered D Flip Flop
