Product Images are shown for illustrative purposes only and may differ from actual product.

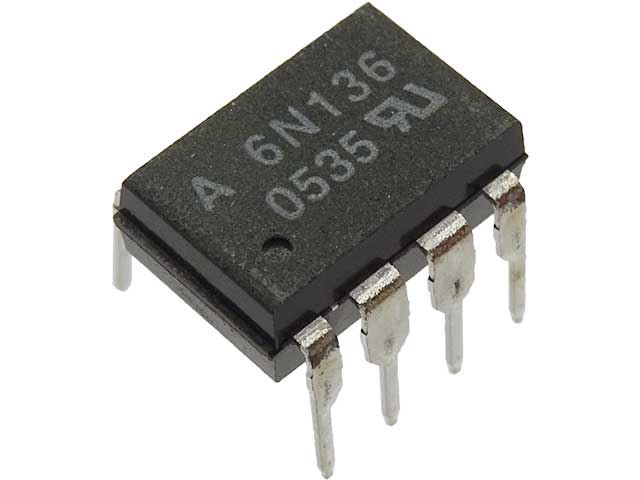

6N136 Optocoupler

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-08-24

  • SKU: 554 | DAA198

Availability: InStock priceValidUntil: 2026-08-24

  • Rs. 28.32 (inc GST)
    Rs.24.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

6N136 Optocoupler

The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package.

Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages.

Features of 6N136 Optocoupler

  • Isolation test voltages : 5300 VRMS

  • TTL compatible

  • High bit rates : 1 Mbit/s

  • High common-mode interference immunity

  • Bandwidth 2 MHz

  • Open-collector output

  • External base wiring possible

  • Reverse voltage (VR) 5V

  • Forward current (IF) 25mA

  • Storage temperature range (Tstg) - 55 to +150°C

  • Ambient temperature range (Tamb) - 55 to +100°C

  • Soldering temperature max. ≤ 10 s, dip soldering ≥ 0.5 mm from case bottom (Tsld) 260°C

  • Maximum output current 16mA

  • Base current (IB) 5mA

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
