• 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

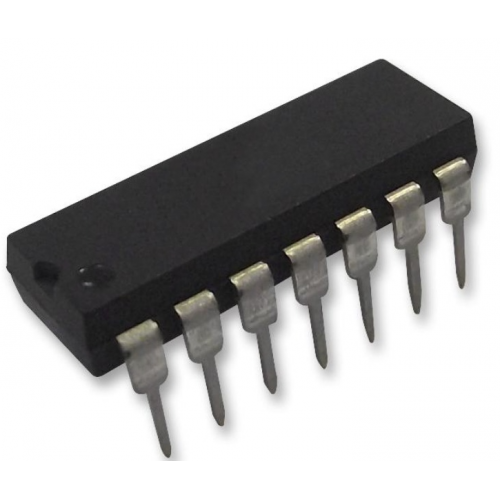

74LS86 Quad 2 Input Exclusive OR Gate DIP IC

  • Stock: Out Of Stock
  • SKU: 8872 | DAI212
  • Rs. 17.94 (inc GST)
    Rs.15.20 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

74LS86 Quad 2 Input Exclusive OR Gate DIP IC

74LS86 Quad 2 Input Exclusive OR Gate DIP IC

The 74LS86 is a quad 2-input exclusive-OR Gate with LS technology and four independent 2-input Exclusive-OR gates. They perform the Boolean functions in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input will be reproduced in true form at the output. If one of the inputs is high, the signal on the other input will be reproduced inverted at the output. The SN74LS86A is characterized for catalogue operation.

DNA solutions, Nashik has various types of Gate IC's. Check out our complete collection of Gate IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

  • Quad 2-input Exclusive-OR (XOR) gates in one package
  • Low power consumption using Schottky TTL technology
  • High-speed logic operation (typical propagation delay ~10ns)
  • Standard 5V TTL supply voltage (4.75V to 5.25V)
  • TTL-compatible input and output levels High noise immunity
  • Input clamping diodes for reduced transmission effects
  • Operating temperature range: 0°C to 70°C

Specifications of 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

  •  IC Type: Gate IC
  • Gate IC Type: XOR
  • Logic Function: XOR (Exclusive OR)
  • Supply Voltage (V): 4.75V
  • Case/Package: DIP
  • No. of Pins: 14
  • No. of Inputs: 2 Inputs
  • Max. Output Current (A): 8mA
  • Product Range: 74LS86
  • Schmitt Trigger Input: Without Schmitt Trigger Input
  • Max. Supply Voltage (V): 5.25V

Applications of 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

  • Parity generation and checking
  • Data comparison and logic operations
  • Arithmetic circuits
  • Pulse shaping and timing circuits
  • Digital communication systems

    Package Includes

          1 x 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
