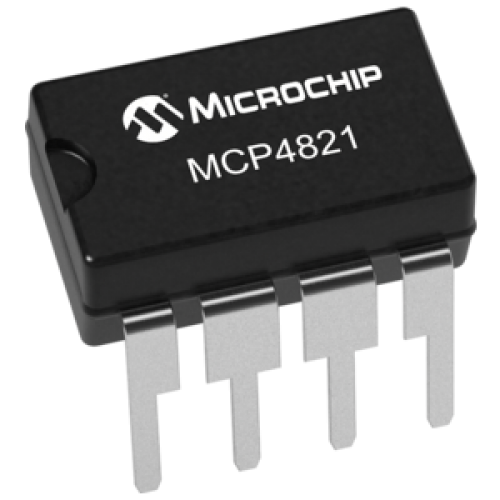

MCP4821 12bit Digital to Analog Convertor

MCP4821 12-bit Digital to Analog Converter

MCP4821 DAC with 12-bit resolution, low power, SPI interface, and internal voltage reference.

The MCP4821 12-bit Digital to Analog Converter is designed for high accuracy and low power consumption. It operates within a voltage range of 2.7V to 5.5V, making it suitable for portable applications. With a single channel output and an internal voltage reference of 2.048V, the MCP4821 delivers precise performance in various environments.

This device is ideal for applications such as set point control, offset adjustment, and sensor calibration. The MCP4821 12-bit Digital to Analog Converter communicates via SPI protocols, ensuring easy integration with existing systems. Additionally, it features an output settling time of just 4.5 µs, providing quick response in demanding applications.

Engineered for reliability, the MCP4821 is AEC-Q100 Grade 1 qualified and operates within a temperature range of -40°C to +125°C. Explore the potential of the MCP4821 12-bit Digital to Analog Converter for your next project, whether in consumer or industrial settings.

Explore the precision of ADC & DAC products with DNA. The MCP4821 by Manufacturer offers reliable digital-to-analog conversion. Check other ADC & DAC that we have in stock.

If you are searching for specific electronic parts, DNA can assist you. We can import items not in stock and support both retail and bulk orders. Consider related components like Humidity & Temperature Sensor, Inductor, Power Supply, MOSFET, Crystal, or Transistor. Contact Us.

Features of MCP4821 12-bit Digital to Analog Converter

• 12-bit Resolution
• Single Channel Voltage Output
• 2.7V to 5.5V Operation
• Operating Current 330 µA (typ)
• Internal Voltage Reference 2.048V
• Output Settling Time 4.5 µs
• SPI Interface
• AEC-Q100 Grade 1 qualified

Specification of MCP4821 12-bit Digital to Analog Converter

• INL ±2 LSB (typ)
• DNL ±0.75 LSB (max)
• Temperature Range -40°C to +125°C
• Package Options: 8-pin PDIP, SOIC, MSOP, and 2x3 DFN

Applications of MCP4821 12-bit Digital to Analog Converter

• Set Point Control
• Sensor Calibration
• Offset Adjustment
• Consumer Electronics
• Industrial Automation

Package Includes

• 1 X MCP4821 12-bit Digital to Analog Converter
