Product Images are shown for illustrative purposes only and may differ from actual product.

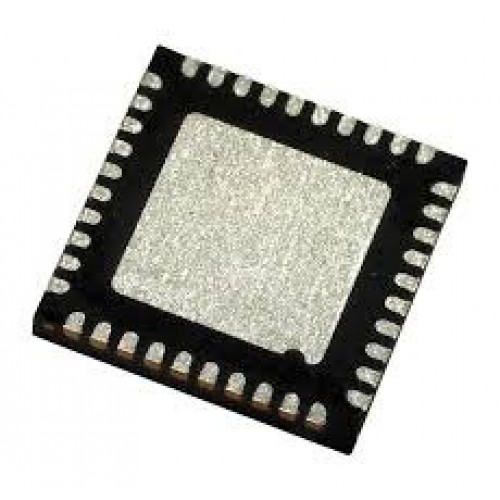

ADE7880ACPZ Polyphase Energy Metering IC
- Stock: 15
- SKU: 7383 | DAG499
-
Rs. 706.23 (inc GST)
Rs.598.50 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ADE7880ACPZ Polyphase Energy Metering IC
ADE7880ACPZ Polyphase Energy Metering IC
The ADE7880ACPZ Polyphase Energy Metering IC is a high accuracy, 3-phase electrical energy measurement IC with serial interfaces and three flexible pulse outputs. The ADE7880 device incorporates second-order sigma delta (Σ-Δ) analog-to-digital converters (ADCs), a digital integrator, reference circuitry, and all of the signal processing required to perform the total (fundamental and harmonic) active, and apparent energy measurements, rms calculations, as well as fundamental-only active and reactive energy measurements. In addition, the ADE7880 computes the rms of harmonics on the phase and neutral currents and on the phase voltages, together with the active, reactive and apparent powers, and the power factor and harmonic distortion on each harmonic for all phases.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ADE7880ACPZ Polyphase Energy Metering IC
- Accurate Energy Measurement: Measures active, reactive, and apparent energy with high precision.
- Power Quality Monitoring: Measures various power quality parameters, including voltage sag, voltage swell, and over current detection.
- Three-Phase Measurement: Supports 3-phase 3-wire or 3-phase 4-wire systems for a wide range of metering applications.
- Wide Dynamic Range: High dynamic range (1000:1) allows accurate measurement under low and high load conditions.
- Integrated ADCs: Features six high-performance ADCs that simultaneously measure voltage and current.
Specifications of ADE7880ACPZ Polyphase Energy Metering IC
- Supply Voltage: 2.4 V to 3.6 V (Digital); 3.3 V (Analog)
- Power Consumption: Low power consumption for energy-efficient applications.
- Analog-to-Digital Converters (ADCs): 24-bit, 6-channel simultaneous sampling ADCs.
- Measurement Accuracy: 0.1% error at dynamic range of 1000:1.
- Current Input Range: ±500 mV (full-scale).
- Voltage Input Range: ±500 mV (full-scale).
Package Includes
- 1 x ADE7880ACPZ Polyphase Energy Metering IC
