Product Images are shown for illustrative purposes only and may differ from actual product.

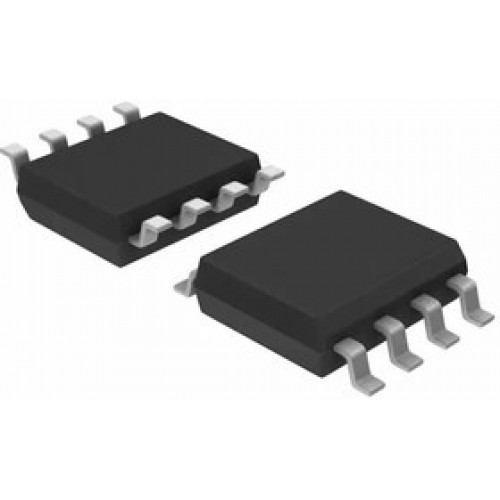

L6387ED013TR High voltage high and low-side driver IC


Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-02-18

  • SKU: 7615 | DAH494

Availability: NotInStock priceValidUntil: 2026-02-18

  • Rs. 194.94 (inc GST)
    Rs.165.20 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

L6387ED013TR High voltage high and low-side driver IC

L6387ED013TR High voltage high and low-side driver IC

The L6387ED013TR High voltage high and low-side driver is a simple and compact high voltage gate driver, manufactured with the BCD™ “offline” technology, and able to drive a half-bridge of power MOSFET or IGBT devices. The high-side (floating) section is enabled to work with voltage rail up to 600 V. Both device outputs can independently sink and source 650 mA and 400 mA respectively and cannot be simultaneously driven high thanks to an integrated interlocking function. The L6387E device provides two input pins and two output pins and guarantees the outputs toggle in phase with inputs. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of L6387ED013TR High voltage high and low-side driver IC

  • High voltage rail up to 600 V
  • dV/dt immunity ± 50 V/nsec in full temperature range
  • Driver current capability – 400 mA source
  • Switching times 50/30 nsec rise/fall with 1 nF load
  • CMOS/TTL Schmitt trigger inputs with hysteresis and pull-down

Applications of L6387ED013TR High voltage high and low-side driver IC

  • Home appliances
  • Motor drivers – DC, AC, PMDC and PMAC motors
  • Lighting applications
  • Industrial applications and drives
  • Induction heating
  • HVAC
  • Factory automation

    Package Includes

    • 1 x L6387ED013TR High voltage high and low-side driver IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
