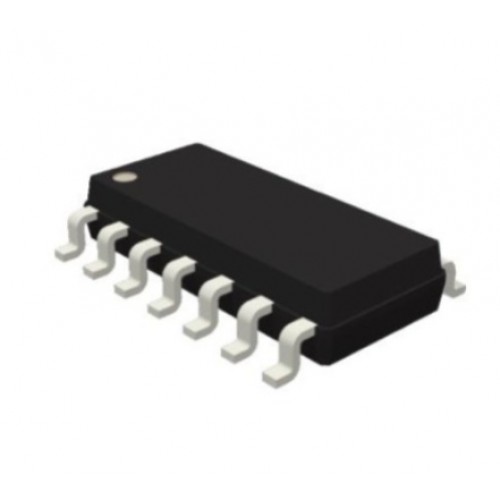

LS7366R-S 32-BIT QUADRATURE COUNTER WITH SERIAL INTERFACE IC
- Stock: Out Of Stock
- SKU: 7344 | DAG174
-
Rs. 920.40 (inc GST)
Rs.780.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LS7366R-S 32-BIT QUADRATURE COUNTER WITH SERIAL INTERFACE IC
LS7366R-S 32-BIT QUADRATURE COUNTER WITH SERIAL INTERFACE IC
The LS7366R is a 32-bit CMOS counter, with direct interface for quadrature clocks from incremental encoders. It also interfaces with the index signals from incremental encoders to perform variety of marker functions. For communications with microprocessors or microcontrollers, it provides a 4-wire SPI/MICROWIRE bus. The four standard bus I/OS are SS/, SCK, MISO and MOSI. The data transfer between a microcontroller and a slave LS7366R is synchronous. The synchronization is done by the SCK clocks supplied by the microcontroller. Each transmission is organized in blocks of 1 to 5 bytes of data. A transmission cycle is Initiated by a high to low transition of the SS/ input. The first byte received in a transmission cycle is always an instruction byte, whereas the second through the fifth bytes are always interpreted as data bytes.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of LS7366R-S 32-BIT QUADRATURE COUNTER WITH SERIAL INTERFACE IC
- Operating voltage: 3V to 5.5V (VDD - VSS)
- 5V count frequency: 40MHz
- 3V count frequency: 20MHz
- 32-bit counter (CNTR).
- 32-bit data register (DTR) and comparator.
- 32-bit output register (OTR).
- Two 8-bit mode registers (MDR0, MDR1) for programmable functional modes.
- 8-bit instruction register (IR).
- Index driven counter load, output register load or counter reset.
Specifications of LS7366R-S 32-BIT QUADRATURE COUNTER WITH SERIAL INTERFACE IC
- Supply Voltage: 4.5V to 5.5V.
- Input Logic Levels: TTL-compatible inputs.
- SPI Clock Frequency: Up to 10 MHz.
- Power Consumption: Low power consumption for efficient operation.
- Quadrature Input Frequency: Capable of handling high-frequency input signals up to a certain limit based on mode configuration.
- Operating Temperature Range: -40°C to +85°C, suitable for industrial applications.
Package Includes
- 1 x LS7366R-S 32-BIT QUADRATURE COUNTER WITH SERIAL INTERFACE IC
