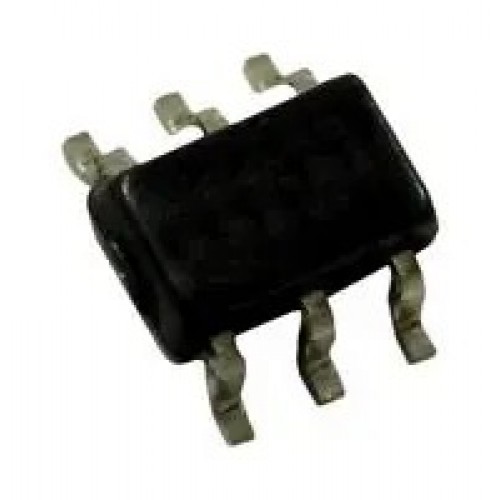

Product Images are shown for illustrative purposes only and may differ from actual product.
MCP4013T-503 E/CH Low-Cost 64-Step Volatile Digital Potentiometer IC
- Stock: Out Of Stock
- SKU: 7475 | DAF850
-
Rs. 661.98 (inc GST)
Rs.561.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MCP4013T-503 E/CH Low-Cost 64-Step Volatile Digital Potentiometer IC
MCP4013T-503 E/CH Low-Cost 64-Step Volatile Digital Potentiometer IC
The MCP4013T-503 E/CH Low-Cost devices are volatile, 6-bit Digital Potentiometers that can be configured as either a potentiometer or rheostat. The wiper setting is controlled through a simple Up/Down (U/D) serial interface. The MCP4013T-503 E/CH is a non-volatile, 7-bit digital potentiometer that allows resistance adjustment via a simple up/down interface. It is particularly suitable for applications requiring a low-power, space-saving design. The 503 indicates a resistance value of 50kΩ. The device can retain its last wiper position even after the power is removed, thanks to its non-volatile memory.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of MCP4013T-503 E/CH Low-Cost 64-Step Volatile Digital Potentiometer IC
- Volatile Digital Potentiometer in SOT-23, SOIC, MSOP and DFN packages
- 64 Taps: 63 Resistors with Taps to terminal A and terminal B
- Simple Up/Down (U/D) Protocol
- Low Wiper Resistance: 75Ω (typ.)
- High-Voltage Tolerant Digital Inputs: Up to 12.5V
- 7-Bit Resolution: Provides 128 steps of resistance adjustment, allowing for fine control.
- End-to-End Resistance: 50kΩ.
- Non-Volatile Memory: Stores the wiper setting, ensuring it retains the value even after a power cycle.
Specifications of MCP4013T-503 E/CH Low-Cost 64-Step Volatile Digital Potentiometer IC
- Resistance Value: 50kΩ
- Number of Steps: 128 steps (7-bit resolution).
- Tolerance: ±20% on the end-to-end resistance.
- Wiper Resistance: 75Ω (typical).
- Current Consumption: Low-power operation, suitable for energy-efficient applications.
- Memory Type: Non-volatile EEPROM for storing wiper positions.
Package Includes
- 1 x MCP4013T-503 E/CH Low-Cost 64-Step Volatile Digital Potentiometer IC
