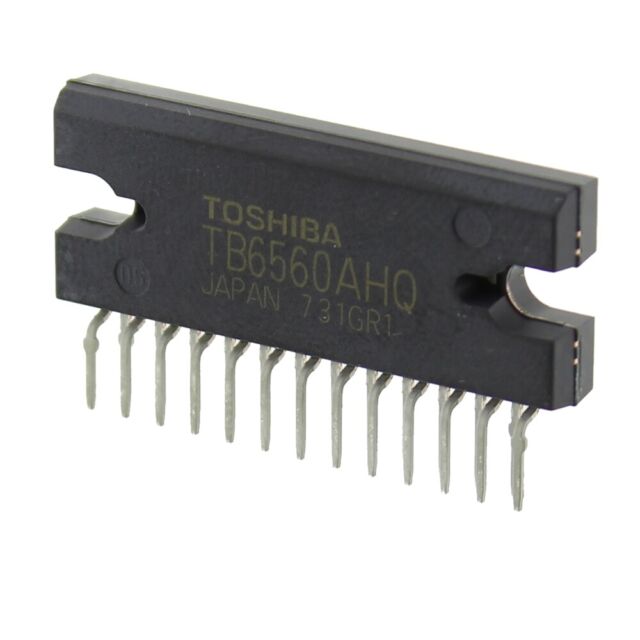

TB6560AHQ ZIP25 Stepping Motor Driver IC
- Stock: 3
- SKU: 6024 | DAG339
-
Rs. 448.40 (inc GST)
Rs.380.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
TB6560AHQ ZIP25 Stepping Motor Driver IC
TB6560AHQ ZIP25 Stepping Motor Driver IC
The TB6560AHQ is a PWM chopper-type stepping motor driver IC designed for sinusoidal-input microstep control of bipolar stepping motors. The TB6560AHQ can be used in applications that require 2-phase, 1-2-phase, 2W1-2-phase and 4W1-2-phase excitation modes. The TB6560AHQ is capable of low-vibration, high-performance forward and reverse driving of a two-phase bipolar stepping motor using only a clock signal.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of TB6560AHQ ZIP25 Stepping Motor Driver IC
- Single-chip motor driver for sinusoidal microstep control of
stepping motors
- Selectable phase excitation modes (2, 1-2, 2W1-2 and 4W1-2)
- High output withstand voltage: VDSS = 40 V
- Internal pull-down resistors on inputs: 100 kΩ (typ.)
- Output monitor pin: MO current (IMO (max) = 1 mA)
- Reset and enable pins
- Thermal shutdown (TSD)
Specifications of TB6560AHQ ZIP25 Stepping Motor Driver IC
- Package: ZIP25
- Motor Type: Bipolar stepper motors
- Operating Voltage Range: 10V to 35V
- Output Current: Up to 3.5A (peak)
- Logic Input Voltage: 5V
- Microstepping: Supports full step, half step, quarter step, eighth step, and sixteenth step
- PWM Frequency: Typically 20 kHz
