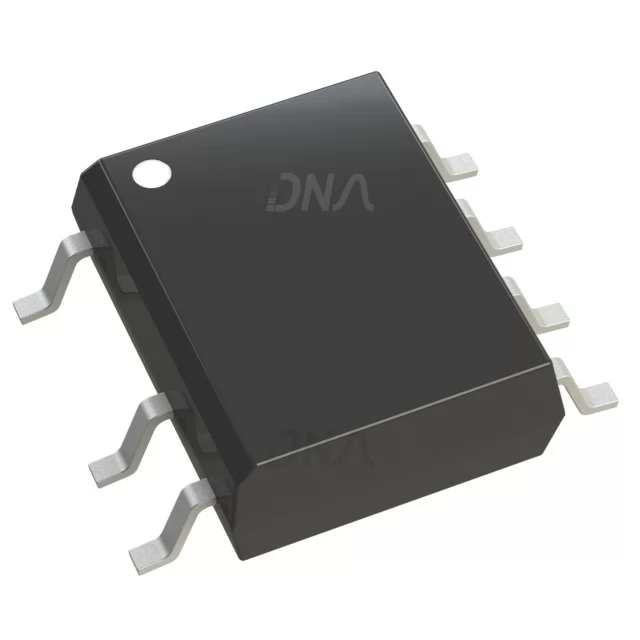

• TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

Product Images are shown for illustrative purposes only and may differ from actual product.

TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

  • Stock: Out Of Stock
  • SKU: 6002 | DAG860

Availability: NotInStock priceValidUntil: 2025-10-13

  • Rs. 112.52 (inc GST)
    Rs.95.35 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

The TNY288DG-TL integrates high-voltage power MOSFET switching with a primary-side controller for off-line applications, eliminating the need for an optocoupler and reducing component count. The TinySwitch-4 architecture enables high power efficiency with very low standby power consumption, making it ideal for energy-efficient applications in consumer electronics, adapters, LED drivers, and standby supplies.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

  • Integrated High-Voltage MOSFET: Provides switching and control for efficient power conversion in AC-DC applications.
  • Primary-Side Regulation: Eliminates the need for an optocoupler, simplifying circuit design and reducing cost.
  • Eco-Friendly Design: Ultra-low standby power consumption (<30 mW at no-load), supporting stringent energy efficiency standards.
  • Enhanced Protection Circuitry: Built-in protection against over-voltage, under-voltage, over-temperature, and output short-circuit.
  • Soft-Start Function: Minimizes inrush current, protecting the power supply during startup.
  • High Switching Frequency: Operates at 132 kHz, reducing component size for compact power supplies.

Specifications of TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

  • Input Voltage Range: 85-265 VAC (universal input), supporting worldwide voltage standards.
  • Switching Frequency: 132 kHz, designed to minimize electromagnetic interference (EMI).
  • Efficiency: High power efficiency with low standby power, meeting energy efficiency standards.
  • Standby Power Consumption: <30 mW, ideal for low-power standby applications.
  • Current Limit: Dynamic current limit that adjusts based on line voltage and load conditions.
  • Thermal Protection: Auto-restart feature in case of over-temperature conditions, adding reliability.

    Package Includes

    • 1 x TNY288DG-TL High Voltage Power MOSFET AC-DC Switching IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
