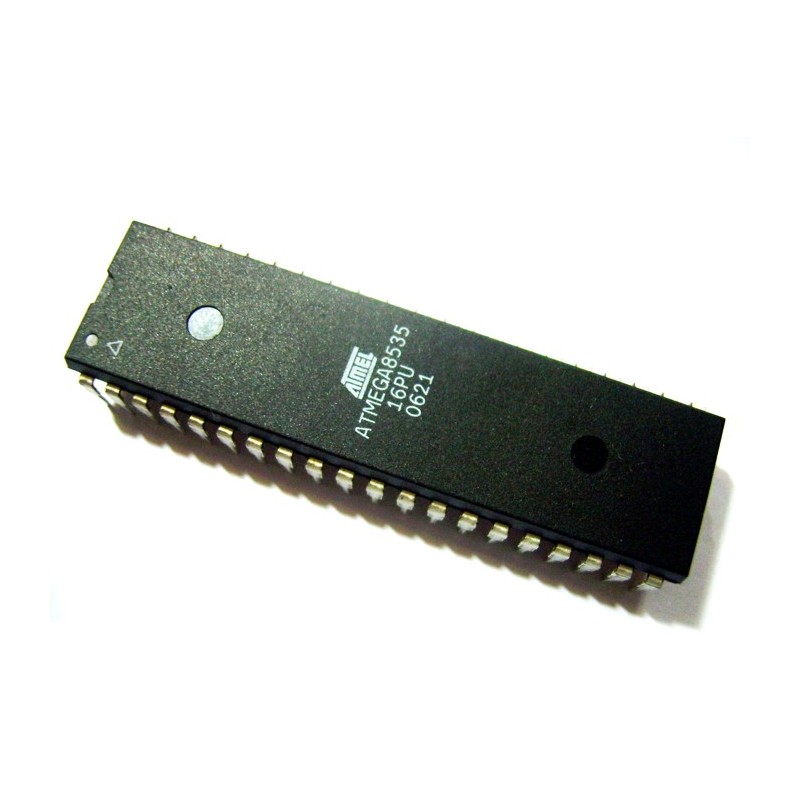

Atmega8535 Microcontroller

Atmega8535 is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB of programmable flash memory, 544B SRAM, 512B EEPROM, and an 8-channel 10-bit A/D converter. The device supports throughput of 16 MIPS at 16MHz and operates between 4.5-5.5 volts.

By executing instructions in a single clock cycle, the device achieves through puts approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features of Atmega8535

• Flash (kBytes): 8 kBytes

• Pin Count: 44

• Max. Operating Freq. (MHz): 16 MHz

• CPU: 8-bit AVR

• # of Touch Channels: 16

• Hardware QTouch Acquisition: No

• Max I/O Pins: 32

• Ext Interrupts: 3

• USB Speed: No

• USB Interface: No

• SPI: 1

• TWI (I2C): 1

• UART: 1

• Graphic LCD: No

• Video Decoder: No

• Camera Interface: No

• ADC Channels: 8

• ADC Resolution (bits): 10

• ADC Speed (ksps): 15

• Analog Comparators: 1

• Resistive Touch Screen: No

• DAC Channels: 0

• DAC Resolution (bits): 0

• Temp. Sensor: No

• Crypto Engine: No

• SRAM (kBytes): 0.5

• EEPROM (Bytes): 512

• Self Program Memory: Yes

• External Bus Interface: 0

• DRAM Memory: No

• NAND Interface: No

• pico-Power: No

• Temp. Range (deg C): -40 to 85

• I/O Supply Class: 2.7 to 5.5

• Operating Voltage (Vcc): 2.7 to 5.5

• FPU: No

• MPU / MMU: no / no

• Timers: 3

• Output Compare Channels: 4

• Input Capture Channels: 1

• PWM Channels: 4

• 32kHz RTC: Yes

• Calibrated RC Oscillator: Yes

• Watchdog: Yes

• CAN: 0

• LIN: 0

• Ethernet: 0

• I2S: No
