  • Atmega16U2 MU IC

Product Images are shown for illustrative purposes only and may differ from actual product.

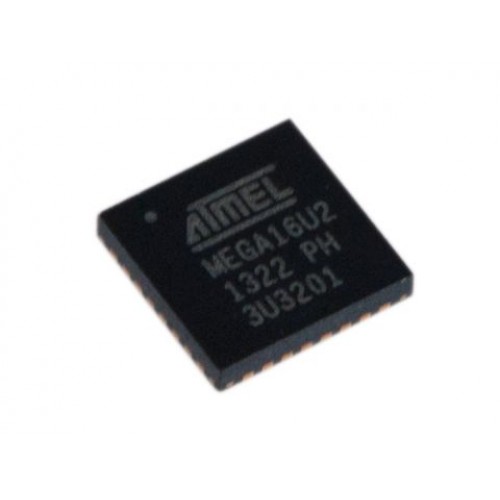

Atmega16U2 MU IC

  • Stock: 10
  • Brand: Microchip
  • SKU: 2305 | DAB426
  • Rs. 218.30 (inc GST)
    Rs.185.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Atmega16U2 MU IC

ATmega16U2-MU 8 bit Microcontroller with 16 Bytes of ISP Flash and USB Controller

The ATmega16U2 IC is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. The high-performance, low-power Microchip 8-bit AVR RISC-based micro controller combines 16KB ISP flash memory with read-while-write capabilities, 512B EEPROM, 512-Byte SRAM, 22 general purpose I/O lines, 32 general purpose working registers, two flexible timer/counters with compare modes and PWM, USART, programmable watchdog timer with internal oscillator, SPI serial port, debug WIRE interface for on-chip debugging and programming, and five software selectable power saving modes. The device operates between 2.7 to 5.5 volts.

By executing powerful instructions in a single clock cycle, the Atmega16U2 IC achieves through puts approaching 1 MIPS per MHz, balancing power consumption and processing speed.

The ATmega16U2 is the same chip that is used in your Arduino board's and acts as a bridge between the computer's USB port and the main processor's serial port.

Specification of Atmega16U2-MU

  • Program Memory Type : Flash
  • Program Memory Size (KB) : 16
  • CPU Speed (MIPS/DMIPS) : 16
  • SRAM (KB) : 512
  • Data EEPROM/HEF (bytes) : 512
  • Digital Communication Peripherals : 1-UART, 2-SPI,
  • Capture/Compare/PWM Peripherals : Input Capture, 1 CCP, 5PWM
  • Timers : 1 x 8-bit, 1 x 16-bit
  • Number of Comparators : 1
  • Number of USB Modules : 1 Full Speed
  • Temperature Range (°C) : -40 to 85
  • Operating Voltage Range (V) : 2.7 to 5.5
  • Pin Count : 32

Integrated Development Environments

  • Atmel Studio IDE ( Atmel-Studio )
  • MPLAB-X-IDE
