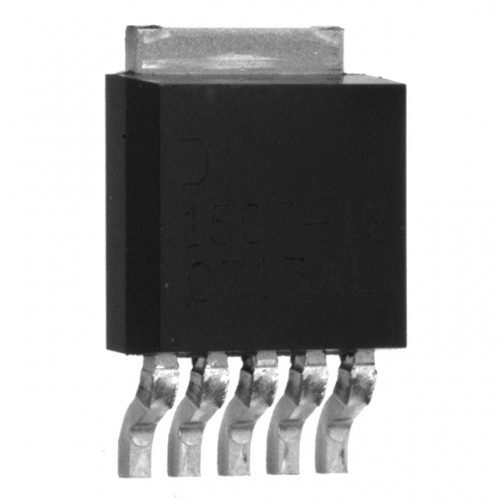

Product Images are shown for illustrative purposes only and may differ from actual product.

XL7026 IC


Write a review | 1 reviews

  • Stock: 82

    Availability: InStock priceValidUntil: 2026-09-19

  • Brand: XL Semi
  • SKU: 1149 | DAB615

Availability: InStock priceValidUntil: 2026-09-19

  • Rs. 106.20 (inc GST)
    Rs.90.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL7026 IC

XL7026 Step Down DC-DC Converter IC

The XL7026 is an efficient, high-voltage switching step-down DC-DC converter with a fixed 150KHz switching frequency that provides up to 0.6A of output current capability, low ripple, excellent linearity and load regulation. XL7026 built-in fixed frequency oscillator and frequency compensation circuit, simplifying the circuit design. The PWM control loop can adjust the duty cycle from 0 to 100% linearly.
XL7026 fixed switching frequency 150KHz, can reduce the external component size. Chip with excellent linear adjustment rate and load regulation, the output voltage support between 1.25V to 20V arbitrary adjustment. Chip internal integrated overcurrent protection, short circuit protection and other reliability modules. XL7026 for the SOP8-EP package, the use of standard external components, flexible application.

Features of XL7026 IC

  • 12V to 90V operating voltage range.
  • Maximum duty cycle 100%.
  • The minimum pressure drop of 0.5V.
  • The output voltage is adjustable from 1.25V to 20V.
  • 5V output maximum 0.6A output current.
  • 15V output maximum 0.3A output current.
  • Fixed 150KHz switching frequency.
  • The maximum output power is less than 5W.
  • Built-in high voltage power MOSFET .
  • Efficiency up to 85%.
  • Excellent linearity and load regulation.
  • Built-in current limiting function.
  • Built-in output short circuit protection function.
  • SOP8-EP package.

Applications of XL7026 IC

  • Electric car controller power supply.
  • Communication.

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
