ADR4550BRZ Series Voltage Reference SMD IC 0.02% 8SOIC

ADR4550BRZ Series Voltage Reference SMD IC 0.02% 8SOIC

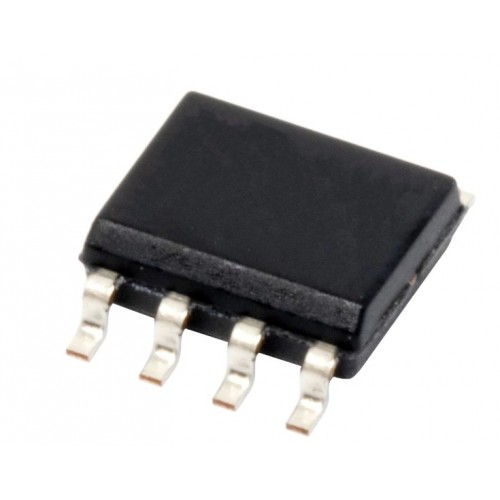

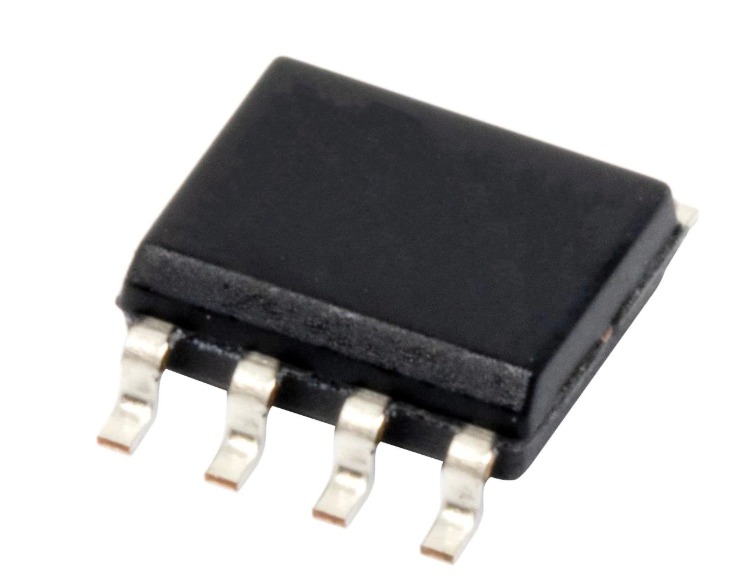

The ADR4550BRZ is a 5.0V bandgap-based precision voltage reference IC with exceptional long-term stability and temperature drift. It operates from a single supply and is designed to provide a precise, low-noise voltage output over a wide temperature range. Encased in an 8-lead SOIC package, the device is suitable for surface-mount designs and compact applications.

DNA solutions, Nashik has various types of Voltage Reference IC's. Check out our complete collection of Voltage Reference IC's.

• High Precision and Stability: Initial accuracy of ±0.02%

• Low Noise: Noise performance as low as 1.5 µV p-p from 0.1 Hz to 10 Hz, ensuring clean signal references for sensitive circuits

• Low Power Consumption: Consumes only 950 µA (typical), optimizing battery-powered and low-power designs

• High Output Drive Capability: Provides up to 10 mA of sourcing capability to drive various loads

Specifications of ADR4550BRZ Series Voltage Reference SMD IC 0.02% 8SOIC

• Reference Voltage (Vout): 5.0 V

• Initial Accuracy: ±0.02%

• Temperature Coefficient: 2 ppm/°C (typical)

• Noise (0.1 Hz to 10 Hz): 1.5 µV p-p

• Supply Voltage (Vin): 6 V to 15 V

• Supply Current: 950 µA (typical)

• Output Current: ±10 mA (sourcing/sinking)

• Line Regulation: 10 ppm/V

• Load Regulation: 10 ppm/mA

• Temperature Range: −40°C to +125°C

Applications of ADR4550BRZ Series Voltage Reference SMD IC 0.02% 8SOIC

• Precision Instrumentation

• Test and Measurement Equipment

• Industrial Control Systems

• Communications Equipment

Package Includes

      1 x ADR4550BRZ Series Voltage Reference SMD IC 0.02% 8SOIC
