Product Images are shown for illustrative purposes only and may differ from actual product.

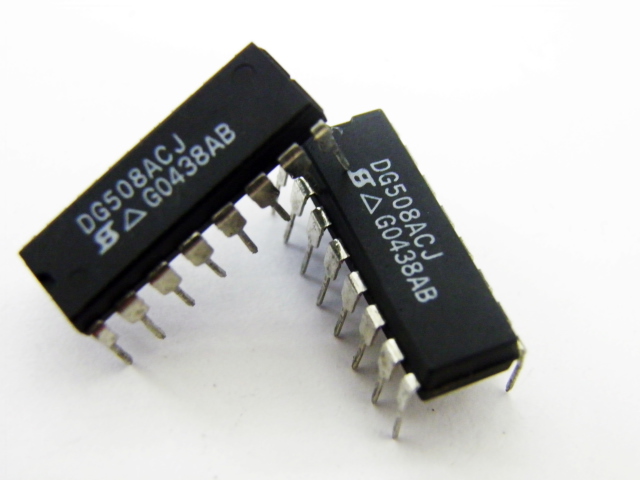

DG508 CMOS Analog Multiplexer

Write a review | 2 reviews

Stock: 2
Availability: InStock priceValidUntil: 2026-11-15
SKU: 388 | DAA290

Rs. 767.00 (inc GST)
Rs.650.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

DG508 CMOS 8-Channel Analog Multiplexer

DG508B, an 8-channel analog multiplexer, offers low leakage, low power, and TTL compatible control.

The DG508 CMOS 8-Channel Analog Multiplexer is designed for precise signal routing in various applications. It connects one of eight inputs to a common output controlled by a 3-bit binary address. With a voltage range from ±5 V to ±20 V, it ensures reliable performance under varying conditions. The device features low leakage current and operates efficiently with minimal power consumption, making it ideal for data acquisition systems and medical instrumentation.

Its break-before-make switching action prevents crosstalk, enhancing data integrity. The DG508 supports a wide temperature range from -40 °C to +125 °C, ensuring ruggedness and stability. This multiplexer is suitable for audio and video signal routing, providing improved data throughput and reduced switching errors.

Choose the DG508 CMOS 8-Channel Analog Multiplexer for reliable performance in demanding applications. Its TTL compatible logic and low charge injection make it a valuable component for engineers and designers in India looking for efficient electronic solutions.

Explore high-quality products from DNA in the Components & IC's category. The DG508 is a reliable choice for your electronic projects. Check other Components & IC's that we have in stock.

If you're searching for specific electronic components, feel free to reach out to us at DNA. We can help you find what you need, whether it's a Crystal, Capacitor, Diode, or even custom imports. We support both retail and bulk orders. Contact Us.

Features of DG508 CMOS 8-Channel Analog Multiplexer

Operates with single or dual power supply
TTL compatible logic
Low leakage typically < 3 pA
Low power - ISUPPLY: 10 μA
Extended temperature range: -40 °C to +125 °C

Specification of DG508 CMOS 8-Channel Analog Multiplexer

44 V power supply maximum rating
Low charge injection - QINJ = 2 pC
> 250 mA latch-up current per JESD78

Applications of DG508 CMOS 8-Channel Analog Multiplexer

Data acquisition systems
Audio and video signal routing
ATE systems
Medical instrumentation

Package Includes

1 X DG508 CMOS 8-Channel Analog Multiplexer

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
