  • IR2112 High and Low Side Driver

Product Images are shown for illustrative purposes only and may differ from actual product.

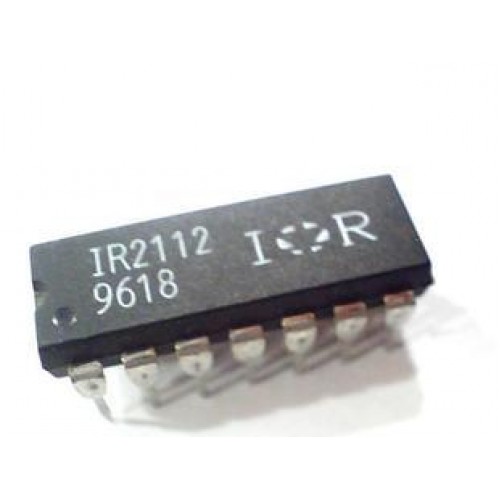

IR2112 High and Low Side Driver

  • Stock: Out Of Stock
  • SKU: 0632 |
  • Rs. 188.80 (inc GST)
    Rs.160.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IR2112 High and Low Side Driver

The IR2112(S) is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs of IR2112 High and Low Side Driver are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration, which operates up to 600 volts.

Features of IR2112 High and Low Side Driver

  •  Floating channel designed for bootstrap operation

  •  Fully operational to +600V

  •  Tolerant to negative transient voltage dV/dt immune

  •  Gate drive supply range from 10 to 20V

  •  Under voltage lockout for both channels

  •  3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset

  •  CMOS Schmitt-triggered inputs with pull-down

  •  Cycle by cycle edge-triggered shutdown logic

  •  Matched propagation delay for both channels

  •  Outputs in phase with inputs
