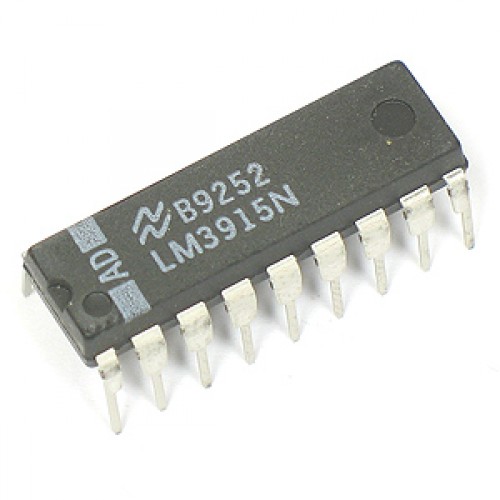

LM3915 Dot/Bar Display Driver
- Stock: 1
- SKU: 699 | DAA069
-
Rs. 88.50 (inc GST)
Rs.75.00 + GSTQty :
| Also Available: CJMCU-1220 ADC 24 Bit ADS1220 ADS Converter Module in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LM3915 Dot/Bar Display Driver
The LM3915 is a monolithic integrated circuit that senses analog voltage levels and drives ten LEDs, LCDs or vacuum fluorescent displays, providing a ogarithmic 3 dB/step analog display.
One pin changes the display from a bar graph to a moving dot programmable, eliminating the need for current limiting resistors. The whole display system can operate from a single supply as low as 3V or as high as 25V. The IC contains an adjustable voltage reference and an accurate ten-step voltage divider. The high-impedance input buffer accepts signals down to ground and up to within 1.5V of the positive supply. Further, it needs no protection against inputs of ±35V. The input buffer drives 10 individual comparators referenced to the precision divider. Accuracy is typically better than 1 dB.
The LM3915 is extremely easy to apply. A 1.2V fullscale meter requires only one resistor in addition to the ten LEDs. One more resistor programs the fullscale anywhere from 1.2V to 12V independent of supply voltage. LED brightness is easily controlled with a single pot. The LM3915 is very versatile. The outputs can drive LCDs, vacuum fluorescents and incandescent bulbs as well as LEDs of any color. Multiple devices can be cascaded for a dot or bar mode display with a range of 60 or 90 dB. LM3915s can also be cascaded with LM3914s for a linear/log display or with LM3916s for an extended-range VU meter.
Features of LM3915
3 dB/step, 30 dB Range
Drives LEDs, LCDs, or Vacuum Fluorescents
Bar or Dot Display Mode Externally Selectable by user
Expandable to Displays of 90 dB
Internal Voltage Reference from 1.2V to 12V
Operates with Single Supply of 3V to 25V
Inputs Operate Down to Ground
Output Current Programmable from 1 mA to 30mA
Input Withstands ±35V without Damage or false output
Outputs are Current Regulated, Open collector
Directly Drives TTL or CMOS
