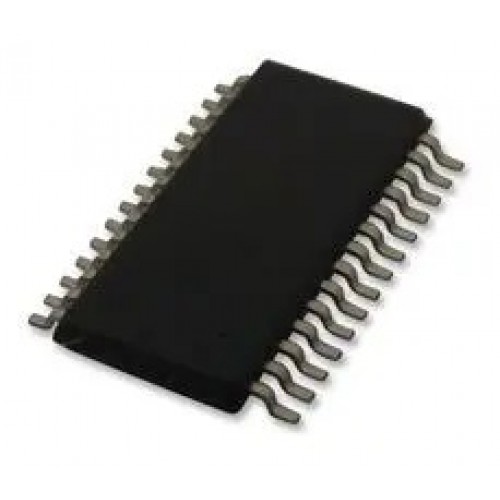

ENC28J60-SS Ethernet Controller with SPI Interface IC (SSOP Package)
- Stock: 8
- SKU: 3884 | DAF945
-
Rs. 348.10 (inc GST)
Rs.295.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ENC28J60-SS Ethernet Controller with SPI Interface IC
ENC28J60 SS Stand Alone Ethernet Controller with SPI Interface in 28 pin SSOP package
The ENC28J60-SS is a stand-alone Ethernet Controller with SPI interface, on board MAC and PHY, 8Kbytes of buffer RAM and an SPI serial interface. With a small foot print package size this minimizes complexity, board space and cost.
This meets all of the IEEE 802.3 specifications. ENC28J60 IC incorporates a number of packet filtering schemes to limit incoming packets. It also provides an internal DMA module for fast data throughput and hardware assisted checksum calculation, which is used in various network protocols. Communication with the host controller is implemented via an interrupt pin and the SPI, with clock rates of up to 20MHz. Two dedicated pins are used for LED link and network activity indication.
DNA solutions, Nashik has various types of Communication IC. Check out our complete collection of Ethernet Communication IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ENC28J60-SS SMD IC
- Integrated MAC and 10Base-T PHY
- Programmable automatic retransmit on collision
- Programmable padding and CRC generation
- SPI interface with clock speeds up to 20MHz
- Configurable transmit/receive buffer size
- Hardware managed circular receive FIFO
- Internal DMA for fast data movement
- Supports unicast, multicast and broadcast packets
- Supports one 10Base-T port with automatic polarity detection and correction
- Supports full and half-duplex modes
Applications of ENC28J60 Ethernet IC
- Industrial
- Automation & Process Control
- Building Automation, Security
- Sensing & Instrumentation
- Communications & Networking
Package Includes
1 x ENC28J60-SS Ethernet Controller with SPI Interface IC (SSOP Package)
