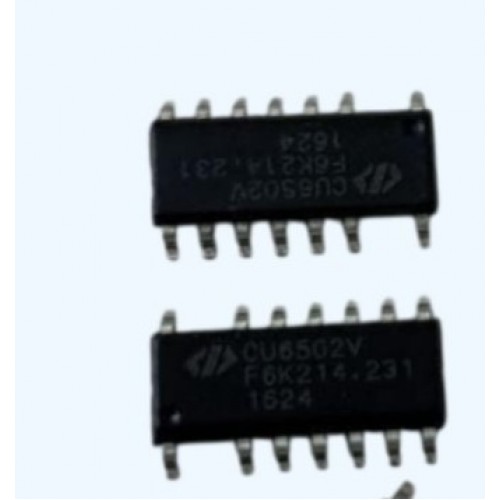

Product Images are shown for illustrative purposes only and may differ from actual product.
CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
- Stock: Out Of Stock
- SKU: 7923 | DAG784
-
Rs. 308.92 (inc GST)
Rs.261.80 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
The LTC1624 is a high-efficiency, current-mode switching regulator controller designed to drive an external N-channel MOSFET in various configurations, including step-down (buck), boost, SEPIC, and inverting regulators. It operates over a wide input voltage range from 3.5V to 36V and is available in an 8-lead SO package.
DNA solutions, Nashik has various types of Regulator IC's. Check out our complete collection of Regulator IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
- Drives external N-channel MOSFETs
- Supports multiple converter topologies: boost, step-down, SEPIC, and inverting
- Wide input and output voltage ranges
- High efficiency across a broad load range
- Low dropout operation with a maximum duty cycle of 95%
- Fixed 200kHz operating frequency
Specifications of CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
- Input Voltage Range: 3.5V to 36V
- Output Voltage Range (Step-Down Configuration): 1.19V to 30V
- Reference Voltage: 1.19V ±1%
- Operating Frequency: 200kHz fixed
- Maximum Duty Cycle: 95% (supports low dropout operation)
- Quiescent Current: 550µA (typical)
- Shutdown Current: 16µA (typical)
Applications of CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
- Notebook and palmtop computers
- Personal Digital Assistants (PDAs)
- Cellular telephones and wireless modems
- Battery-operated digital devices
- DC power distribution systems
- Battery chargers
Package Includes
1 x CU6502V F6K214.231 1624 SWITCHING REGULATOR IC
