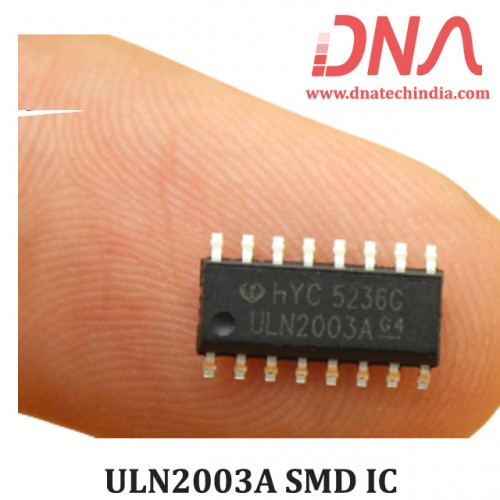

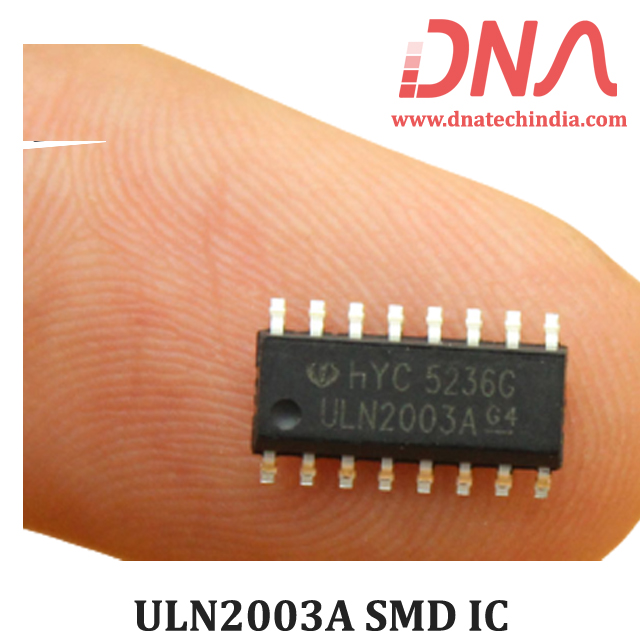

ULN2003A SMD IC (SOIC16 Package)

Write a review | 1 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-03-08
SKU: 2717 | DAE173

Rs. 16.67 (inc GST)
Rs.14.13 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ULN2003A Seven Darlington Array in SMD (SOIC16 package)

ULN2003A high Voltage & high current darlington Transistor Array in SOIC16 package

The ULN2003 IC is a high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.

The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers, line drivers and logic buffers.

DNA Solutions has various types of Motor driver and Relay Driver IC's. IC Check out our complete collection of various types of Digital IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ULN2003 IC

Seven Darlingtons per package
Output current 500 mA per driver (600 mA peak)Output voltage 50 V
Integrated suppression diodes for inductive loads
Outputs can be paralleled for higher current
TTL/CMOS/PMOS/DTL compatible inputs
Input pins placed opposite to output pins to simplify layout

Application of ULN2003 IC

Relay Drivers
Stepper and DC Brushed Motor Drivers
Lamp Drivers
Display Drivers (LED and Gas Discharge)
Line Drivers
Logic Buffers

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
