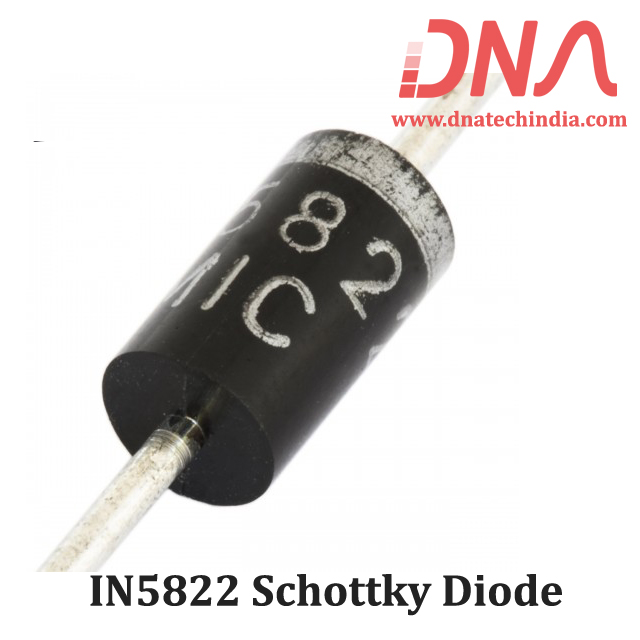

IN5822 Schottky Diode

IN5822 Low Drop Power Schottky Diode

IN5822 Diode offers low forward voltage drop, high current capability, and low switching noise for efficient power management.

The IN5822 Low Drop Power Schottky Diode is designed for high-frequency inverter applications, providing reliable performance in low voltage scenarios. With a maximum forward current of 3.0A and a surge current capability of up to 80A, this diode ensures effective polarity protection and free wheeling. Its low forward voltage drop minimizes energy loss, making it ideal for energy-efficient circuits.

This IN5822 Diode operates effectively within a temperature range of -65°C to +125°C, with a thermal resistance of 28 °C/W from junction to ambient. Its robust design supports high current loads, making it suitable for various electronic applications. The average rectified forward current is rated at 3.0A, ensuring durability and reliability under demanding conditions.

Use the IN5822 Diode in your projects for improved efficiency and performance. It is perfect for applications requiring low switching noise and high surge capability. Explore our complete collection of diodes for more options tailored to your needs.

Discover quality products from DNA, your trusted retailer for Diodes & Transistors. Explore the range of Diodes & Transistors we offer to enhance your electronic projects. Check other "Diodes & Transistors" that we have in stock.

Are you looking for specific electronic components? We can help. If you can't find certain parts, we can import them for you. We support both retail and bulk orders. Explore related items like HMI Displays, Inductors, Development Boards, and more. Contact Us.

Features of IN5822 Low Drop Power Schottky Diode

• Low Switching Noise
• Low Forward Voltage Drop
• High Current Capability
• High Surge Current Capability
• Operates at 3.0A
• Thermal Resistance 28 °C/W
• Temperature Range -65 to +125°C

Specification of IN5822 Low Drop Power Schottky Diode

• Average Rectified Forward Current: 3.0A
• Non-repetitive Peak Forward Surge Current: 80A
• Storage Temperature Range: -65 to +125°C
• Operating Junction Range: -65 to +125°C

Applications of IN5822 Low Drop Power Schottky Diode

• Low Voltage Applications
• High Frequency Inverters
• Free Wheeling Circuits
• Polarity Protection
• Energy Efficient Designs

Package Includes

• 1 X IN5822 Low Drop Power Schottky Diode
