Product Images are shown for illustrative purposes only and may differ from actual product.

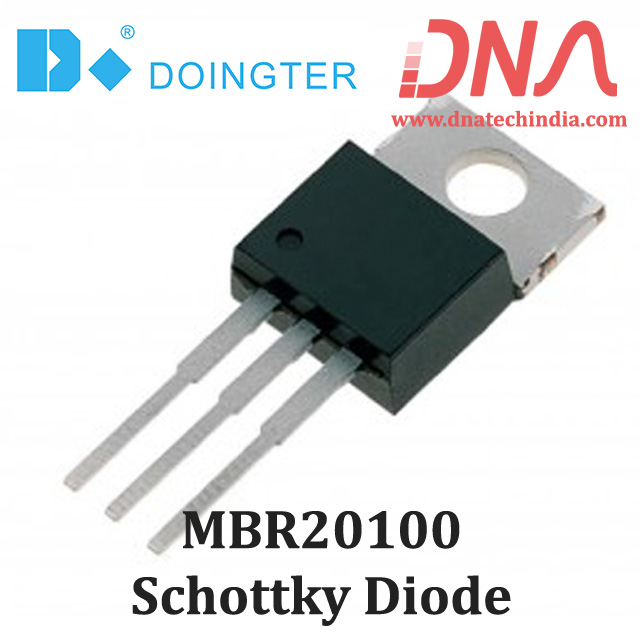

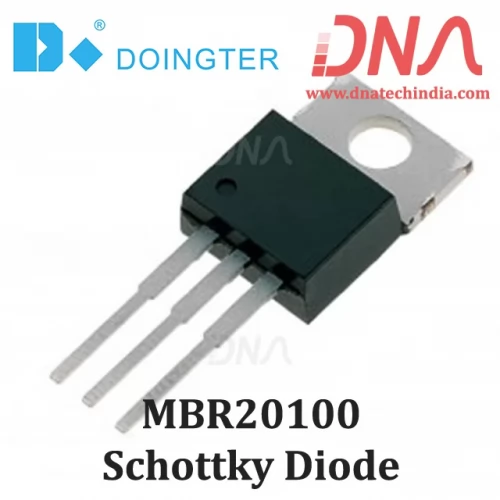

MBR20100 Schottky Diode (Doingter)


Write a review | 0 reviews

  • Stock: 28

    Availability: InStock priceValidUntil: 2026-09-24

  • Brand: Doingter
  • SKU: 983 | DAE544

Availability: InStock priceValidUntil: 2026-09-24

  • Rs. 18.88 (inc GST)
    Rs.16.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MBR20100 Schottky

MBR20100 Dual Schottky Diode with common cathode; Doingter Make

MBR20100 is a rectifier dual diode that is commonly used in Converter circuits. MBR20100 Schottky diode comes in TO220 package. The package consists of two diodes in parallel increasing the current rating and reducing the package size and cost. Schottky diodes are faster & efficient (low voltage drop) they are commonly preferred over normal diodes provided the reverse voltage is need not be high.

Also since the diode package has common cathode it can be used in protection circuits and filter circuits for voltage clamping. MBR20100 is a perfect high current dual Schottky diode for your application.

DNA Solutions has large collection of various types of Diodes & Transistors. Check our complete collection of Schottky Diodes.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MBR20100 Schottky Diode

  • 20 A Total (10 A Per Diode Leg)

  • Guard−Ring for Stress Protection

  • Low Forward Voltage

  • 175°C Operating Junction Temperature

  • Epoxy Meets UL 94 V−0 @ 0.125 in

  • Low Power Loss/High Efficiency

  • High Surge Capacity

  • Low Stored Charge Majority Carrier Conduction

  • Shipped 50 units per plastic tube

  • These Devices are Pb−Free and are RoHS Compliant

Mechanical Data of MBR20100 Schottky Diode

  • Case : Epoxy, Molded
  • Weight : 1.9 grams (approximately)
  • Finish : All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
  • Lead Temperature for Soldering Purposes : 260°C Max. for 10 Seconds

Related Links

Package Includes

1 x MBR20100 Schottky Diode (Doingter)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
